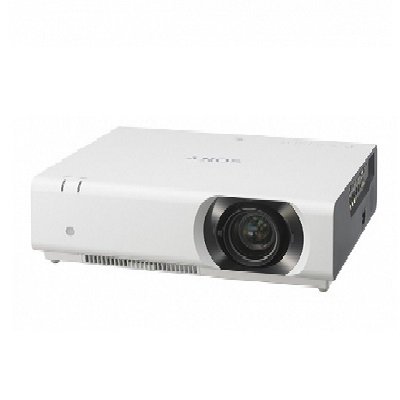

SONY VPL CH350 4,000 lumens WUXGA 3LCD Basic Installation projector

Name: SONY VPL CH350 4,000 lumens WUXGA 3LCD Basic Installation projector
SKU: 185
Price: 1442.13 USD
Availability: InStock

The VPL-CH350 delivers an outstanding brightness of 4000 lumens and ultra high-quality images with WUXGA resolution. Sony 3LCD BrightEra™ panel technology provides higher picture quality, substantially brighter images, higher efficiency, consistent colour stability and longer durability. It also delivers installation flexibility, environment-friendly features, and a low total cost of ownership, in a stylish design that blends into any decor. The lens shift/zoom capability and the image correction features easily allow users to fit any image onto the screen, even from an offset projection angle.-ONE YEAR WARRANTY

$1.442,13

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Display system

3 LCD system

Display device

Size of effective display area

0.64” (16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Number of pixels

6,912,000 (1920 × 1200 × 3) pixels

Projection lens

Focus

Manual

Zoom – Powered/Manual

Manual

Zoom – Ratio

Approx. x 1.45

Throw Ratio

1.5:1 to 2.2:1

Lens shift – Powered/Manual

Manual

Lens shift – Range Vertical

+/- 5%

Lens shift – Range Horizontal

+/- 4%

Light source

Ultra high pressure mercury lamp

Wattage

250 W type

Recommended lamp replacement time*1

Lamp mode: High

3000 H

Lamp mode: Standard

4000 H

Lamp mode: Low

5000 H

Filter cleaning / replacement cycle (Max.) *1

Filter cleaning / replacement cycle (Max.)

Same as the lamp replacement

Screen size

40” to 300” (1.02 m to 7.62 m) (measured diagonally)

Light output

Lamp mode: High

4000 lm

Lamp mode: Standard

3200 lm

Lamp mode: Low

2600 lm

Color light output

Lamp mode: High

4000 lm

Lamp mode: Standard

3200 lm

Lamp mode: Low

2600 lm

Contrast ratio (full white / full black)*2

Contrast ratio (full white / full black)

2500: 1

Speaker

12 W x 1 (monaural)

Displayable scanning frequency

Horizontal

19 kHz to 92 kHz

Vertical

48 Hz to 92 Hz

Display resolution

Computer signal input

Maximum display resolution: 1920 × 1200 dots*3

Video signal input

480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal only; 1080/60p, 1080/50p, 1080/24p

Colour system

NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Key stone correction (Max)

Vertical

+/- 30 degrees

Horizontal

+/- 20 degrees

OSD language

24-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Indonesian, Finnish, Hungarian, Greek)

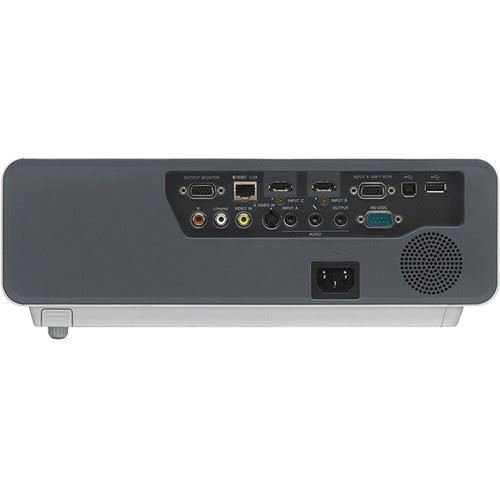

INPUT OUTPUT (Computer/Video/Control)

INPUT A

RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack

INPUT B

HDMI input connector: HDMI 19-pin, HDCP support

INPUT C

HDMI input connector: HDMI 19-pin, HDCP support

S-VIDEO IN

S-video input connector: Mini DIN 4-pin

VIDEO IN

Video input connector: Phono jack

OUTPUT

Monitor output connector*4: Mini D-sub 15-pin (female)
Audio output connector*5: Stereo mini jack

REMOTE

RS-232C connector: D-sub 9-pin (male)

LAN

RJ-45,10BASE-T/100BASE-TX

USB

Type-A

USB

Type-B

MICROPHONE IN

Microphone input: Mini Jack

Acoustic noise

Lamp mode: Low

29 dB

Operating temperature / Operating humidity

0°C to 40°C (32°F to 104°F) / 20% to 80%（no condensation)

Storage temperature / Storage humidity

-20°C to +60°C (-4°F to +140°F) / 20% to 80% (no condensation)

Power requirements

AC 100 V to 240 V, 3.6 A to 1.6 A, 50/60 Hz

Power consumption

AC 100 V to 120 V

Lamp mode: High: 353 W

AC 220 V to 240 V

Lamp mode: High: 334 W

Power Consumption (Standby Mode)

AC 100 V to 120 V

0.5 W (when “Standby mode” is set to “Low”)

AC 220 V to 240 V

0.5 W (when “Standby mode” is set to “Low”)

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V

5.0 W (LAN)
5.1 W (optional WLAN module)
5.5 W (All Terminals and Networks Connected) (when “Standby Mode” is set to “Standard”)

AC 220 V to 240 V

5.2 W (LAN)
5.3 W (optional WLAN module)
5.5 W (All Terminals and Networks Connected) (when “Standby Mode” is set to “Standard”)

Standby Mode / Networked Standby Mode Activated

After about 10 Minutes

Wireless Network(s) On/Off Switch

1) Press the MENU button, then select [Connection/Power]
2) [WLAN Settings]
3) [WLAN Connection]
4) Select On or Off

Heat dissipation

AC 100 V to 120 V

1204 BTU/h

AC 220 V to 240 V

1139 BTU/h

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions)

Approx. 406 × 113 × 330.5 mm (15 31/32 × 4 7/16 × 13 inches)

Mass

Approx. 5.7 kg (12 lb)

Supplied accessories

Remote commander

RM-PJ8

Optional accessories

Replacement lamp

LMP-C250

Wireless LAN Module

IFU-WLM3

Notes

*1

This figure is expected maintenance time, not guaranteed time. The actual value depends on the environment and how the projector is used.

*2

The value is average.

*3

Available for VESA Reduced Blanking signal.

*4

From INPUT A.

*5

Works as an audio switcher function. Output from a selected channel; not available in standby.

Environmental notice for customers in the USA

Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or see www.sony.com/mercury for additional information.
