Display System
Display System
3 LCD system
Display device
Size of effective display area
0.63” (16mm) x 3 BrightEra LCD Panel Aspect ratio 4:3
Number of pixels
2,359,296 (1024×768 x 3) pixels
Projection lens
Focus
Manual
Zoom Powered/Manual
Manual
Zoom – Ratio
Approx. x 1.3
Throw Ratio
1.37:1 to 1.80:1
Light source
Type
Ultra high pressure mercury lamp
Wattage
225 W type
Recommended lamp replacement time *3
Lamp mode: High
4000 H
Lamp mode: Standard
6000 H
Lamp mode: Low
10000 H
Filter cleaning / replacement cycle (Max.)
Filter cleaning / replacement cycle (Max.)
10,000H
Screen size
Screen size
30″ to 300″ (0.76 m to 7.62 m) (measured diagonally)
Light output *1
Lamp mode: High
3600 lm
Lamp mode: Standard
2500 lm
Lamp mode: Low
1900 lm
Color light output *1
Lamp mode: High
3600 lm
Lamp mode: Standard
2500 lm
Lamp mode: Low
1900 lm
Contrast ratio (full white / full black) *2
Contrast ratio (full white / full black) *2
20000:1
Speaker
Speaker
Speaker 16 W (monaural)
Displayable scanning frequency
Horizontal
15 kHz to 92 kHz
Vertical
48 Hz to 92 Hz
Display resolution
Computer signal input
Maximum display resolution: 1600 x 1200 dots, fV:60Hz
Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i,1080/60p, 1080/50p
Colour system
Colour system
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone Correction (Max) *4
Vertical
+/-30 degrees
OSD languages
OSD languages
27-languages (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungary, Greek, Czech, Slovakia, Romania)

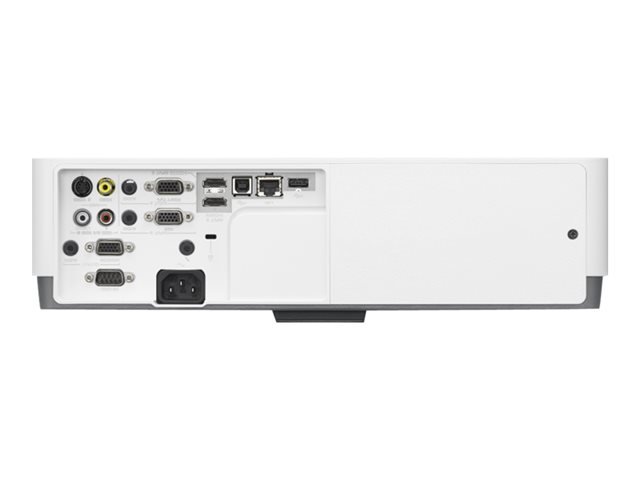

INPUT OUTPUT (Computer/Video/Control)
INPUT A
RGB / Y PB PR inputconnector: Mini D-sub 15 pin female
Audio input connector: Stereo mini jack
Audio input connector: Stereo mini jack
INPUT B
RGB input connector: Mini Dsub 15 pin female
Audio input connector: Stereo mini jack
Audio input connector: Stereo mini jack
INPUT C
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
Audio input connector: HDMI audio support
INPUT D
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
Audio input connector: HDMI audio support
S VIDEO IN
S Video input connector: Mini DIN 4-pin
VIDEO IN
Video input connector: Phono jack
OUTPUT
MONITOR output connector: Mini D-sub 15 pin female
Audio output connector: Stereo mini jack
Audio output connector: Stereo mini jack
REMOTE
D-sub 9-pin male/RS232C
LAN
RJ-45, 10BASE-T/100BASE-TX
USB
Type-A
USB
Type-B
MICROPHONE IN
Microphone jack: Mini Jack
Acoustic Noise *5
Lamp mode: Low
29dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity
0°C to 40°C (32°F to 104°F) /20-80% (no condensation)
Storage temperature / Storage humidity
Storage temperature /Storage humidity
-10 °C to +60°C (14°F to +140°F) /20% to 80% (no condensation)
Power requirements
Power requirements
AC 100 V to 240 V, 3.4 A to 1.5 A, 50 Hz / 60 Hz
Power consumption
AC 100 V to 120 V
Lamp mode: High 333 W
AC 220 V to 240 V
Lamp mode: High 320 W
Power Consumption (Standby Mode)
AC 100 V to 120 V
0.50 W (when “Standby mode” is set to “Low”）
AC 220 V to 240 V
0.50 W (when “Standby mode” is set to “Low”）
Power Consumption (Networked Standby Mode)
AC 100 V to 120 V
5.5W (LAN)
6.0W (optional WLAN module)
6.2W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”)
6.0W (optional WLAN module)
6.2W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”)
AC 220 V to 240 V
5.8W (LAN)
6.3W (optional WLAN module)
6.6W (ALL Terminals and Networks Connected, when “Standby Mode”is set to “Standard”)
6.3W (optional WLAN module)
6.6W (ALL Terminals and Networks Connected, when “Standby Mode”is set to “Standard”)
Standby Mode Networked Standby Mode Activated
Standby Mode Networked Standby Mode Activated
Approx. 10 Minutes
Wireless Network(s) On/Off Switch
Wireless Network(s) On/Off Switch
1) Press the MENU button, then select [Connection/Power]
2) [WLAN Settings]
3) [WLAN Connection]
4) Select On or Off
2) [WLAN Settings]
3) [WLAN Connection]
4) Select On or Off
Heat dissipation
AC 100 V to 120 V
1136 BTU/h
AC 220 V to 240 V
1092 BTU/h
Dimensions (W x H x D)
Dimensions (W x H x D) (without protrusions)
Aprox. 365 x 96.2 x 252mm (14 3/8 x 3 25/32 x 9 29/32”)
Mass
Mass
Approx. 3.9kg (8.6 lb)
Supplied accessories
Remote commander
RM-PJ8
Wireless LAN Module
Optional Lamp
LMP-E221
Optional Accessories
IFU-WLM3
Notes
*1
The values are estimate
*2
This value is average with lamp dimming.
*3
The figures are approximate. They vary depending on the environment or how the projector is used.
*4
The picture quality may deteriorate when the V Keystone function is used for it is an electrical correction.
*5
The figures are approximate. They vary depending on the environment or how the projector is used.
Environmental notice for customers in the USA
Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or see www.sony.com/mercury for additional information.
