Display System
3 LCD system
Size of effective display area
0.59” (15 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels
3,072,000 (1280×800 x 3) pixels
Focus
Manual
Zoom – Powered/Manual
Manual
Zoom – Ratio
Approx. x1.3
Throw Ratio
1.36:1 to 1.77:1
Type
Ultra high pressure mercury lamp
Wattage
210 W type
Recommended lamp replacement time*1
Lamp mode: High
3000 H
Lamp mode: Standard
5000 H
Lamp mode: Low
10000 H
Filter cleaning / replacement cycle (Max.)*1
Filter cleaning / replacement cycle (Max.)
1000 H (Cleaning)
Screen size
30” to 300” (0.76 m to 7.62 m)(measured diagonally)
Lamp mode: High
2600 lm
Lamp mode: Standard
1900 lm
Lamp mode: Low
1500 lm
Lamp mode: High
2600 lm
Lamp mode: Standard
1900 lm
Lamp mode: Low
1500 lm
Contrast ratio (full white / full black)*2
Contrast ratio (full white / full black)
3000:1
Speaker
1 W x 1 (monaural)
Displayable scanning frequency
Horizontal
19 kHz to 92 kHz
Vertical
48 Hz to 92 Hz
Computer signal input
Maximum display resolution: UXGA 1600 x 1200 dots*3
Video signal input
NTSC, PAL, SECAM,480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal (HDMI input) only; 1080/60P, 1080/50p
The following items are available for digital signal (HDMI input) only; 1080/60P, 1080/50p
Color system
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
Vertical
+/- 30 degrees
OSD language
23-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungarian)

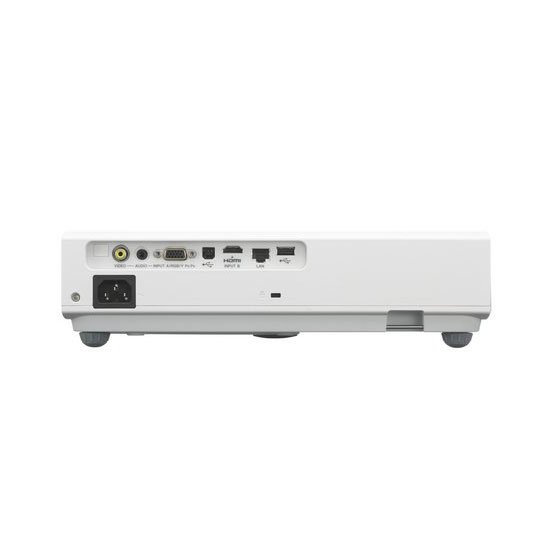

INPUT OUTPUT (Computer/Video/Control)
INPUT A
RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack (shared with VIDEO IN)
Audio input connector: Stereo mini jack (shared with VIDEO IN)
INPUT B
HDMI input connector: HDMI 19-pin, HDCP support
VIDEO IN
Video input connector: Pin jack
Audio input connector: Shared with INPUT A
Audio input connector: Shared with INPUT A
Lamp mode: Low
< 35 dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity
0°C to 35°C (32°F to 95°F) / 20% to 80%（no condensation)
Storage temperature / Storage humidity
Storage temperature / Storage humidity
-10°C to +60°C (14°F to +140°F) / 20% to 80%（no condensation)
Power requirements
AC 100 V to 240 V, 2.9 A to 1.2 A, 50 Hz / 60 Hz
AC 100 V to 120 V
Lamp mode: High: 288 W
AC 220 V to 240 V
Lamp mode: High: 275 W
Power Consumption (Standby Mode)
AC 100 V to 120 V
0.5 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V
0.5 W (when “Standby mode” is set to “Low”)
AC 100 V to 120 V
980 BTU/h
AC 220 V to 240 V
936 BTU/h
Dimensions (W x H x D) (without protrusions)
Approx. 315 x 75 x 230.5 mm (12 13/32 X 2 15/16 X 9 1/16 inches)
Mass
Approx. 2.5 kg (5.5 lb)
Remote commander
RM-PJ8
Optional Lamp
LMP-D213
