NEC PA804UL Laser Projector

NEC PA804UL Laser Projector

Type LCD
Brightness [AL] 8200
Resolution 1920 x 1200
Light Source Laser
Light Source Life [h] 20000
Weight [kg] 24.1



Download  Catalog PDF  Click here

Original price was: $7.890,63.Current price is: $7.237,59.

Guaranteed Safe Checkout

Features & Compatibility

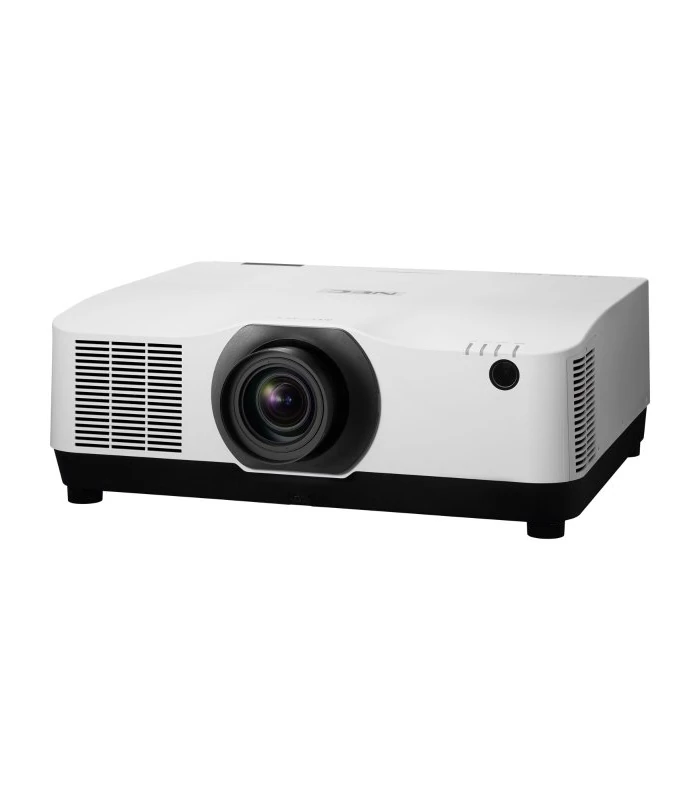

NEC PA804UL Laser Projector

Description

A new class of silent projection

Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 8,200 lumens PA804UL laser projector, ensuring all attention is focused on the stunning image delivery.

Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.

With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.

Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA804UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.

Benefits

  • No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
  • No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
  • Super Silent operation – patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.
  • Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
  • Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.


Projection Technology 3LCD Technology
Native Resolution
1920 x 1200 (WUXGA)
Aspect Ratio 16:10
Contrast Ratio 1 3000000:1
Brightness 1 7500 ANSI Lumen (approx. 80% in Eco Mode), with std. optional lense
Brightness (Boost Mode) 8200 ANSI Lumen
Lamp Laser Light Source
Light Source Life [hrs] 20000 2
Lens 4 motorized lens options; 5 manual lens options
Lense Adjustment Motorized and manual (depending on lens)
Lens shift H:±20, V:+10,-50
Keystone correction +/- 40° manual horizontal / +/- 40° manual vertical
Projection Factor depending on lens selection (std. option NP41ZL at 1.3-3.02:1)
Projection Distance [m] 0.7 – 50.9
Screen Size (diagonal) [cm] / [inch] Maximum: 1,270 / 500″; Minimum: 101.6 / 40″
Zoom Motorized and manual (depending on lens)
Focus Adjustment Motorized and manual (depending on lens)
Supported Resolutions
1080i/50/60;1080p/24/25/30/50/60;1920×1200 (WUXGA) – 640×480 (VGA);2048 x 1080 (2k);2560 x 1600 (WQXGA);4096 x 2160 (4k);480i/50;480p/60;576i/50;576p/50;720p/50;720p/60
Frequency Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 48-120 Hz

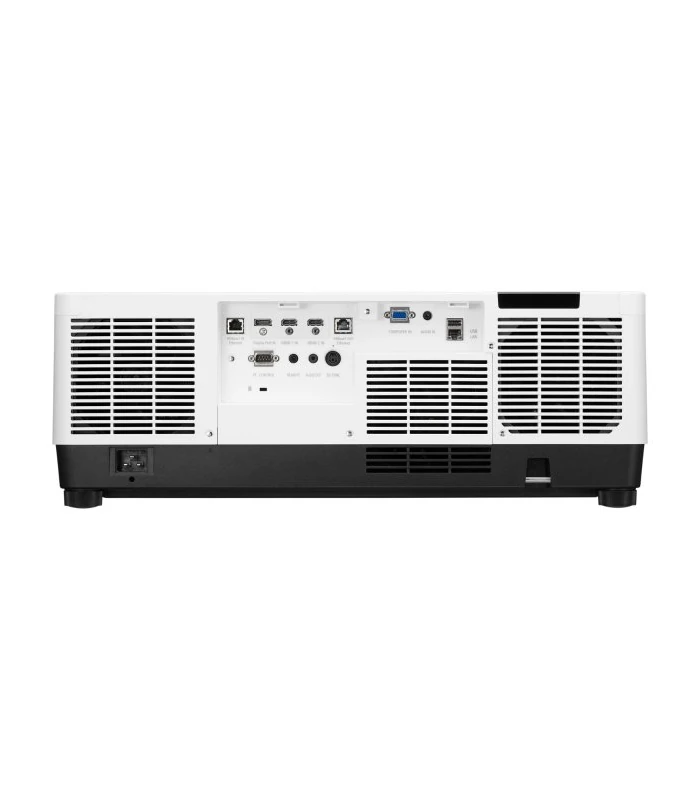

CONNECTIVITY

RGB (analog) Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Digital Input: 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Output: 1 x HDBaseT supporting HDCP 2.2
Audio Input: 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN 1 x RJ45
USB 1 x Type A (USB 2.0 high speed)
3D Sync Output: 1 x Mini DIN 3pin

REMOTE CONTROL

Remote Control Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control

ELECTRICAL

Power Supply 100-240 V AC; 50 – 60 Hz
Power Consumption [W] 615 (Normal) / 350 (Eco) / 0.8 (Network Stand-by) / 0.28 (Stand-by)

MECHANICAL

Dimensions (W x H x D) [mm] 599 x 208 x 490 (without lens and feet)
Weight [kg] 24.1
Fan Noise [dB (A)] 28 / 30 (Eco / Normal)
Colour Versions Black; White

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C] 0 to 40
Operating Humidity [%] 20 to 80 non-condensing
Storage Temperature [°C] -10 to 50
Storage Humidity [%] 20 to 80 non-condensing

ERGONOMICS

Safety and Ergonomics CE; EAC; ErP; RoHS; TUEV Type Approved

ADDITIONAL FEATURES

Special Characteristics 3D ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI – Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control

GREEN FEATURES

Energy Efficiency ECO scheduler; Intelligent Power Management; Less than 0.3W Stand-By power; Longer Light Source Life; Software scheduling; Timer-Function
Ecological Materials 100% recyclable packaging; Downloadable manuals
Ecological Standards ErP compliant

WARRANTY

Projectors 3 years pan-European service
Light Source 3 years or 10000h (whatever comes first)

SHIPPING CONTENT

Shipping Contents IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM

OPTIONAL ACCESSORIES

Optional Accessories 10 optional bayonet lenses; Cable Cover (NP13CV-W, NP13CV-B); Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF)
Lenses – motorized NP40ZL (0.79-1.11:1); NP41ZL (1.3-3.02:1); NP43ZL (2.99-5.93:1); NP44ML-PA4 (0.32:1); NP50ZL (0.6-0.75:1)
Lenses – manual NP11FL (0.79:1); NP12ZL (1.16-1.52:1); NP13ZL (1.46-2.95:1); NP14ZL (2.9-4.68:1); NP15ZL (4.59-7.02:1)
