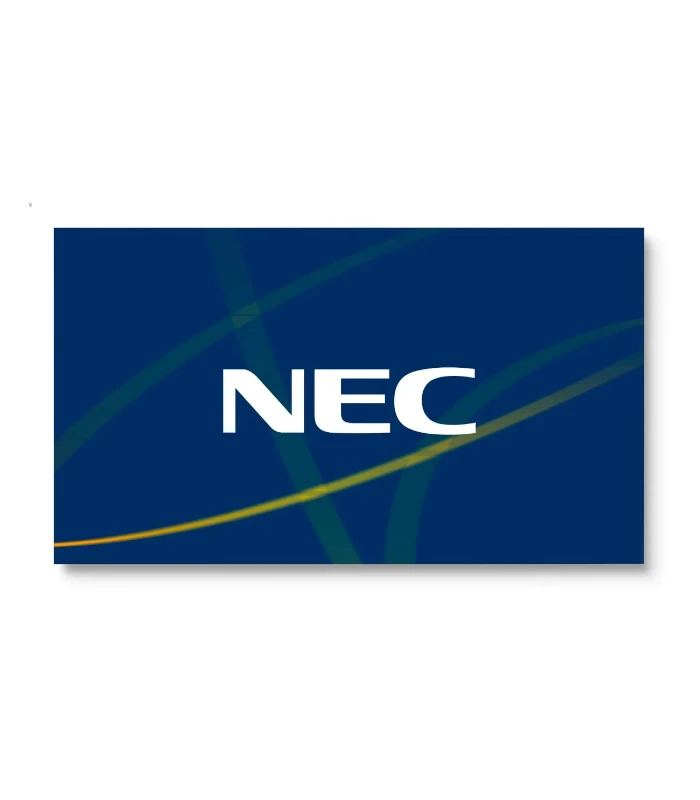

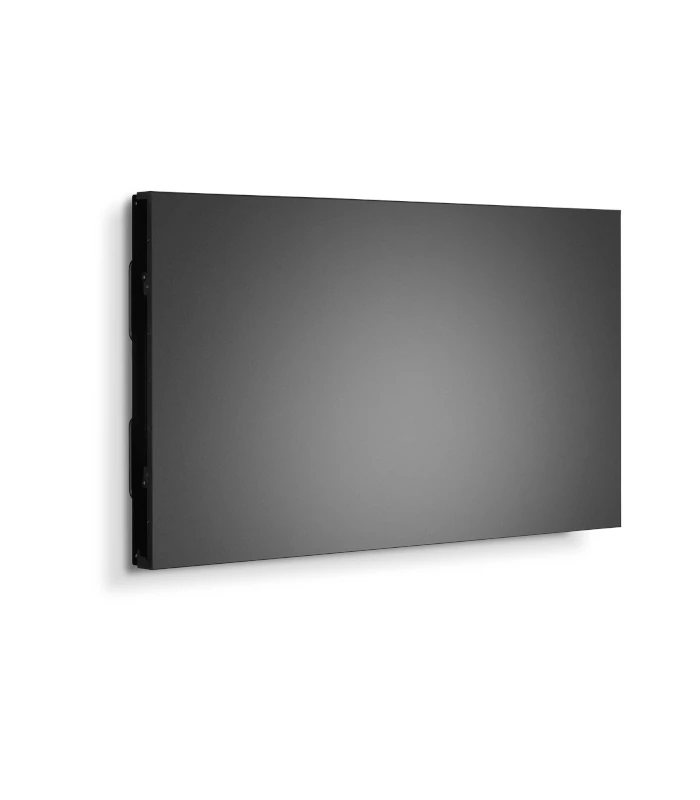

Nec MultiSync UN552 LCD 55″ Video Wall Display

Nec MultiSync UN552 LCD 55″ Video Wall Display

Haze Level Pro
Operating Hours 24/7
Brightness [cd/m²] 700
Resolution 1920 x 1080
Order Code 60004884

Guaranteed Safe Checkout

Features & Compatibility

Nec MultiSync UN552 LCD 55″ Video Wall Display

video Walls you can rely on



VThe MultiSync® UN552 sets the standard for video wall technology. Featuring a minimal 3.5 mm bezel these display modules create impressive high resolution video walls with barely visible image gaps. With perfect picture quality and high product reliability, these displays are designed for the rigors of 24/7 operation. At a high brightness level of 700 cd/m² your message will be well received with effortless readability even in the brightest ambient light conditions. An advanced set of intelligent features make the displays easy to install and operate and support significantly reduced maintenance requirements. The 55” display is ideally suited to create huge screen surfaces for fixed installations and for mid and longer viewing distances.

NEC’s vast experience in the video wall market is evident in the design with features that reduce costs, ease installation and enhance the visual impact of content in control rooms, broadcast studios, transport installations and the rental market.

Benefits

  • Easy installation – effortlessly set up you wall display with Auto TileMatrix and out-of-the-box calibrations. Save time by plugging in ready-to-use image presets for predefined application scenarios.
  • Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
  • Secure Reliability and Longevity of Video Walls – unique NEC heat management system enables the user to monitor and control the heat inside the display.
  • Smart media integration – seamlessly integrate the media source of your choice into the video wall display. Use the wide range of NEC’s OPS Slot-in PCs, and Raspberry Pi compute modules, for content feed and computing.
  • Lifelike and consistent colour – expect colour reproduction that feels true to life with IPS panel technology, the top choice when it comes to colour consistency. The S-IPS panel ensures that perfect visibility is maintained in landscape ando portrait mode and at extreme viewing angles as viewers pass by.

DISPLAY

Panel Technology S-IPS with Direct LED backlights
Active Screen Area (W x H) [mm] 1,209.6 x 680.4
Screen Size [inch/cm] 55 / 138.8
Aspect Ratio 16:9
Pixel Pitch [mm] 0.630
Brightness [cd/m²] 700
Contrast Ratio (default) > 1700:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Gamut 72% of NTSC
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Haze Level [%] Pro (28)
Supported Orientation Landscape; Portrait

SYNCHRONISATION RATE

Horizontal Frequency [kHz] 26 – 134
Vertical Frequency [Hz] 23 – 86

RESOLUTION

Native Resolution
1920 x 1080
Supported on DisplayPort and HDMI
1024 x 768;1080i;1080p;1280 x 1024;1280 x 768;1360 x 768;1600 x 1200;1920 x 1080;3840 x 2160;640 x 480;720p (50/60 Hz);800 x 600

CONNECTIVITY

Input Video Analogue 1 x VGA; Composite (RCA)
Input Video Digital 1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Analogue 2 x 3,5 mm jack
Input Audio Digital 2 x DisplayPort; 2 x HDMI
Input Control 1 x Remote Control (3.5 mm jack); 1 x RS232; 2 x LAN 100Mbit
Input Data 1 x microSD (MediaPlayer); 1 x USB 1.0 (Downstream); 1 x USB 1.0 (MediaPlayer); 1 x USB 2.0 (Upstream); 2 x USB 1.0 (Compute Module, 1 x 5V/2A powered)
Output Video Digital 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC); 1 x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer)
Output Audio Analogue 1 x 3,5 mm jack
Output Control LAN 100Mbit

CALIBRATION

Factory Calibration Gamma; Intensity; RGB; Uniformity; White Point
Sensor Calibration (through USB) PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
Calibration with Software Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; Update Uniformity Correction; White Point
Calibration Software NEC Display Wall Calibrator

OPEN MODULAR INTELLIGENCE

OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W] 3.6 / 58
Compute Module Slot Slot Technology: Compute Module 3 Slot (NEC proprietary standard)

SENSORS

Human Sensor Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable
NFC Sensor Integrated, 2cm range, free NEC Android App required

ELECTRICAL

Power Consumption Eco/max. [W] 150 shipping; 380 (max.)
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 90
Storage Temperature [°C] -20 to 60

MECHANICAL

Dimensions (W x H x D) [mm] Without stand: 1,213.4 x 684.2 x 103.8
Weight [kg] Without stand: 25.5
Bezel Width [mm] 1.2 bottom/right; 2.3 top/left; 3.5
VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M6

MEDIAPLAYER

Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Supported Video Formats MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling

AVAILABLE OPTIONS

Accessories Calibration kit (KT-LFD-CC2); Feet (ST-5220); Overframe kit (KT-55UN-OF5); Remote control kit (KT-RC3); Speaker (SP-TF1); Wall mount (PD04VWM MFS 46-55 L/P; PD04VW QR 46-55 L/P; CK02XUN MFS 55 L/P)
Compute Module Slot Raspberry Pi Compute Module 1 and 3
OPS Slot Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs

GREEN FEATURES

Energy Efficiency Carbon savings meter; Energy consumption: 141 kWh/1000 h; Energy efficiency class: G; Human Sensor; LED backlight
Ecological Standards EnergyStar 8.0

ADDITIONAL FEATURES

Special Characteristics Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2; PJLink Support; TileMatrix; USB Media Player; User input priority definition; User readable log function
Colour Versions Black Front Bezel, Black Back Cabinet
Safety and Ergonomics BSMI; CE; EAC; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Pixel Failure Class ISO 9241-307, Class 2
Audio Optional Speakers (15 W + 15 W)
Plug and Play VESA DDC/CI
Shipping Content Display; DisplayPort Cable; HDMI Cable; LAN cable (RJ45); Power Cable
Operating Hours 24/7
