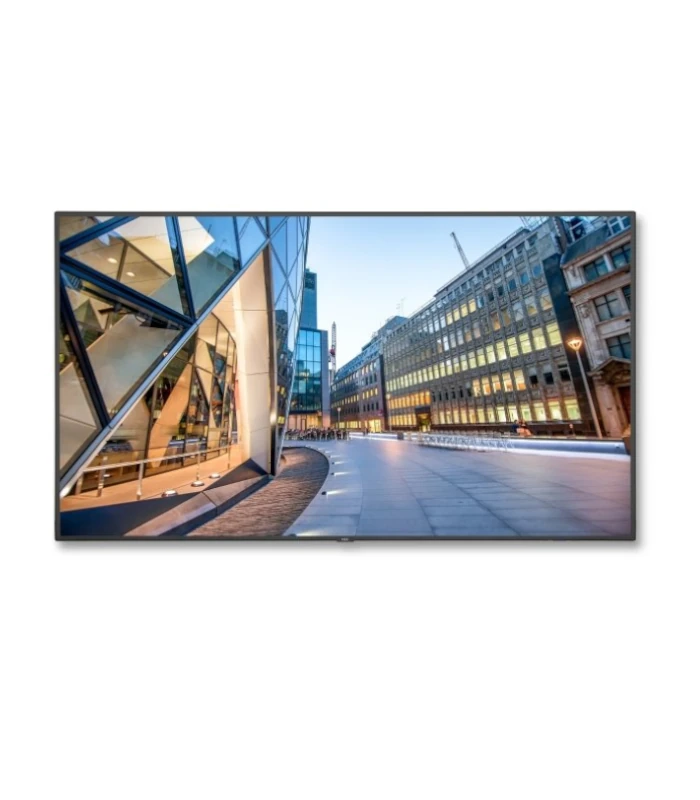

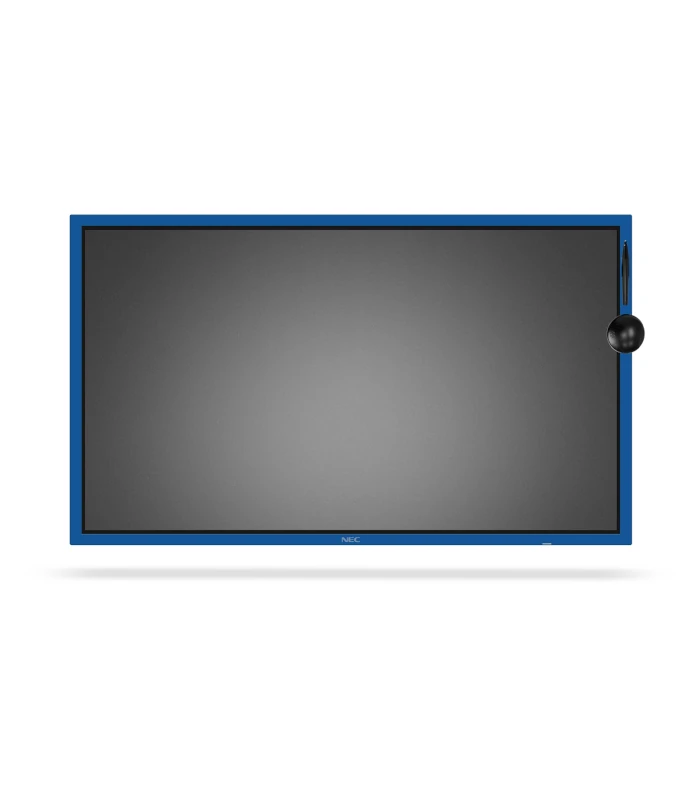

NEC MultiSync C751Q SST LCD 75″ Touch Display

NEC MultiSync® C751Q SST LCD 75″ ShadowSense™ Touch Display

Haze Level Pro
Operating Hours 24/7
Brightness [cd/m²] 350
Resolution 3840 x 2160
Order Code 60004575

Guaranteed Safe Checkout

Features & Compatibility

NEC MultiSync C751Q SSTCD 75″ Shadow Sense Touch Display

Give your meeting room a bright new touch

Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership, with long life-times.

The ShadowSenseTM Technology gives you the freedom to throw open the blinds and let the daylight enrich your meeting – even in direct sunlight the precise touch interface functions perfectly without ghost touches. Meanwhile, the anti-glare coating minimizes disturbing reflections and helps to eliminate annoying fingerprints on the touch surface. The design of the touch frame brings a modern styling to ShadowSenseTM Touchscreens, whilst the precision pen the user an even better writing experience. Add the Mosaic Canvas software for whiteboarding and sketching capability to deliver the perfect interactive meeting solution. When adding an OPS Slot-in PC, an NEC Soundbar and Huddly Go wide screen camera, your collaborative meeting solution is ready to boost creativity and efficiency in your meeting rooms.

Benefits

  • Seamless Touch Integration – work hand-in-hand with multi-touch applications while using the 10 touch points of ShadowSense™ touch technology in real-time collaboration.
  • Simple Plug & Play – easy set-up without the need to install any drivers on the host PC for all major operating systems.
  • Avoid Touch Frustration – satisfy users with the highest touch point accuracy, filtering out misleading touch-sizes and avoiding ghost touches even in high ambient light operation.
  • Intuitive Touch Behaviour – benefit from Windows Ink supported automatic recognition of interactions, whether touch gestures, pen writing or erasing, in MS Office applications.
  • Future-proof connectivity and processing – enjoy latency-free touch experience with 60 Hz refresh rates at numerous native UHD inputs including the OPS option slot.
  • DISPLAY
    Panel Technology IPS with Edge LED backlights
    Active Screen Area (W x H) [mm] 1,649.7 x 927.9
    Screen Size [inch/cm] 75 / 189
    Brightness [cd/m²] 350, 254 (shipment setting)
    Contrast Ratio (typ.) 1200:1
    Viewing Angle [°] 178 / 178 (at contrast ratio > 10:1)
    Colour Depth [bn] 1.073 (10bit)
    Response Time (typ.) [ms] 8 (grey-to-grey)
    Haze Level [%] Pro (28)
    Supported Orientation Face Up 1; Landscape; Portrait

    GLASS

    Type Premium toughened glass, single sided anti-reflective coating
    Thickness [mm] 5
    Light Transmission [%] 92 (+/- 2 %)

    SYNCHRONISATION RATE

    Horizontal Frequency [kHz] 31.5 – 91.1
    Vertical Frequency [Hz] 24 – 85

    RESOLUTION

    Native Resolution
    3840 x 2160
    Supported Resolutions
    1920 x 1080;1920 x 2160;3840 x 2160;4096 x 2160

    CONNECTIVITY

    Input Video Digital 2 x DisplayPort (with HDCP); 3 x HDMI (with HDCP)
    Input Audio Analogue 1 x 3,5 mm jack
    Input Audio Digital 2 x DisplayPort; 3 x HDMI
    Input Control 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
    Input Data 1 x microSD (MediaPlayer); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
    Output Video Digital 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
    Output Audio Analogue 1 x 3,5 mm jack
    Output Control 1 x LAN 100Mbit

    OPEN MODULAR INTELLIGENCE

    OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
    OPS Max. Current / Power Consumption [A / W] 4.7 / 75
    Compute Module Slot Slot Technology: Compute Module 3 Slot (NEC proprietary standard)

    SENSORS

    Human Sensor Optional, external, 4-5m range, triggered actions programmable
    Temperature Sensor Integrated, 3 sensors, triggered actions programmable
    NFC Sensor Integrated, 2cm range, free NEC Android App required

    ELECTRICAL

    Power Consumption Eco/max. [W] 207 Eco (shipment setting), 262
    Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
    Power Management VESA DPMS

    ENVIRONMENTAL CONDITIONS

    Operating Temperature [°C] +0 to +30
    Operating Humidity [%] 20 to 80

    MECHANICAL

    Dimensions (W x H x D) [mm] Without stand: 1,746 x 1,025 x 88.5
    Weight [kg] 77.5
    Bezel Width [mm] 33 (top and bottom); 35.2 (left and right)
    VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8
    Ingress Protection IP5x (front); IP2x (back)

    TOUCH

    Touch Technology ShadowSense™
    Number of Touches Real multi-touch up to 10 touches
    Response Time [ms] 6 to 8
    Touch Method Finger; Gloves; Stylus (≥ 2 mm)
    Supported Operating System Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X
    Data Interface USB 2.0 (full speed) HID; USB powered, plug & play
    Accuracy [mm] < 2
    Touch Resolution
    12-bit (4096 x 4096)
    Ambient Light Rejection Up to full sunlight (approx. 100000 lux)
    Palm Rejection no
    Windows Ink yes

    MEDIAPLAYER

    Supported File Storage / File System MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
    Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
    Supported Video Formats MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
    Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling

    AVAILABLE OPTIONS

    Accessories Soundbar; Speaker (SP-TF1); Trolley (PD02MHA, PD03MHA, PD02MHM); Wall mount (BalanceBox 400 HEAVY, PDW T XL-2)
    Compute Module Slot NEC Compute Module; Raspberry Pi Compute Module 1 and 3
    OPS Slot HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; OPS-2C Quad 3G SDI

    GREEN FEATURES

    Energy Efficiency Carbon savings meter; ECOMode; Local dimming

    ADDITIONAL FEATURES

    Special Characteristics 12-bit Look Up table; AMX Net Linx Support; ASCII Control Commands; Auto ID assignment; Auto tiling function; Automated Email Alert; CEC Support; Cisco Webex Kit compatible; Crestron Connected Support; DICOM Simulation; Display Browser Control; Emergency Notification; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); Key Guide; Media Player with Browser Control; NaViSet Administrator 2; Omni Color Control; OSD rotation for portrait mode; PIN as theft protection; PJLink Support; Powered USB-Port; Scheduler; Slim LED Indicator; SNMP Support; Tile Matrix (10 x 10); User readable log function
    Colour Versions colour variations available on request
    Safety and Ergonomics CE; EMC Class B; RoHS
    Pixel Failure Class ISO 9241-307, Class 1
    Audio Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
    Shipping Content CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Pen and Eraser; Remote Control; USB cable
    Operating Hours 24/7
