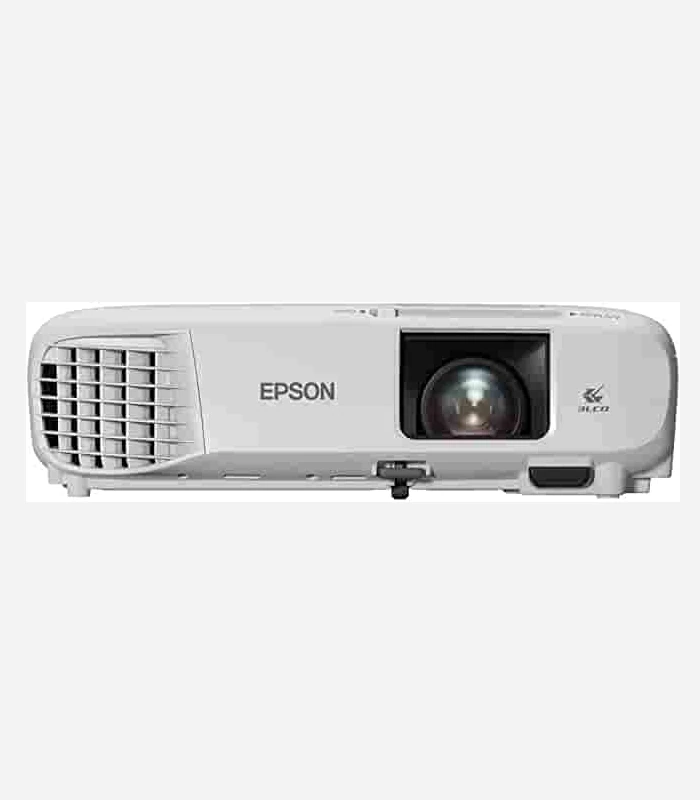

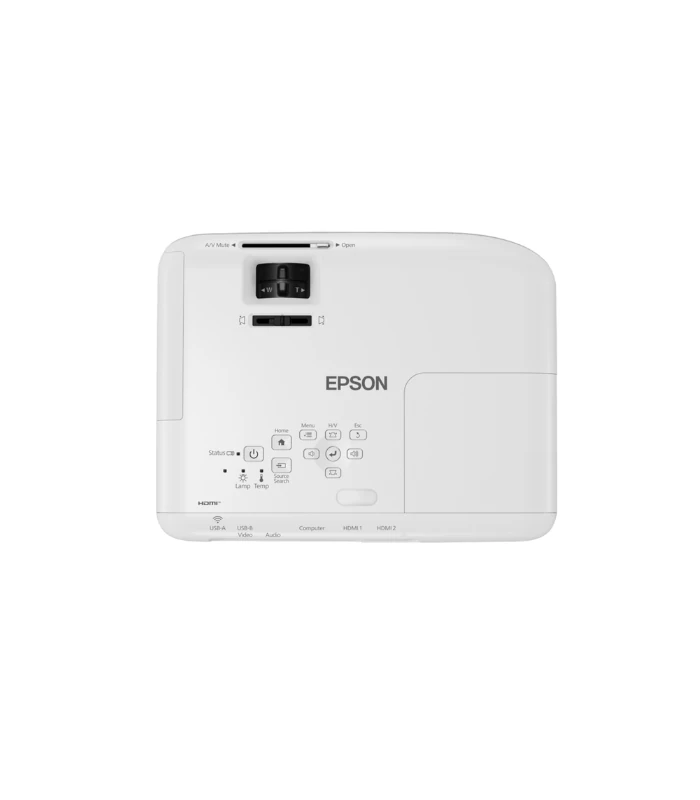

Epson EB-FH06 projector

Tech Specs

Product features and specifications are subject to change without prior notice.

• Technology

  Projection System

  3LCD Technology, RGB liquid crystal shutter

  LCD Panel

  0.61 inch with C2 Fine

• Image

  Color Light Output

  3,500 Lumen- 2,300 Lumen (economy) In accordance with ISO 21118:2013

  White Light Output

  3,500 Lumen – 2,300 Lumen (economy) In accordance with ISO 21118:2013

  Resolution

  Full HD 1080p, 1920 x 1080, 16:9

  High Definition

  Full HD

  Aspect Ratio

  16:9

  Contrast Ratio

  16,000 : 1

  Light source

  Lamp

  Lamp

  UHE, 210 W, 6,000 h durability, 12,000 h durability (economy mode)

  Keystone Correction

  Auto vertical: ± 30 °, Manual horizontal ± 30 °

  Colour Video Processing

  10 Bits

  2D Vertical Refresh Rate

  192 Hz – 240 Hz

  Colour Reproduction

  Upto 1.07 billion colours

• Optical

  Throw Ratio

  1.22 – 1.47:1

  Zoom

  Manual, Factor: 1.2

  Lens

  Optical

  Screen Size

  34 inches – 332 inches

  Projection Distance Wide/Tele

  1.62 m – 1.95 m ( 60 inch screen)

  Projection Lens F Number

  1.49 – 1.72

  Projection Lens Focal Length

  16.9 mm – 20.28 mm

  Projection Lens Focus

  Manual

  Offset

  14 : 1

• Connectivity

  USB Display Function

  2 in 1: Image / Mouse

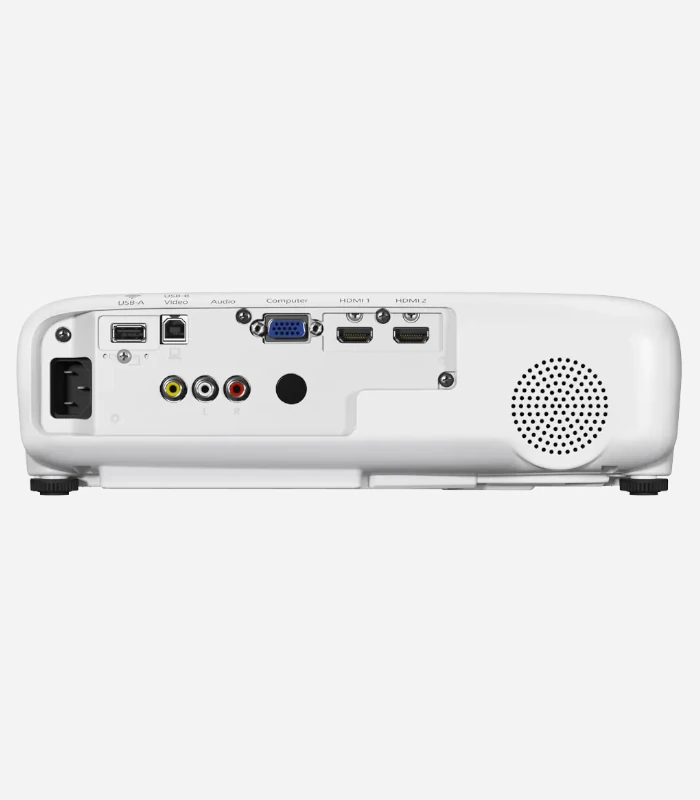

  Interfaces

  USB 2.0 Type A, USB 2.0 Type B, Wireless LAN IEEE 802.11b/g/n (optional), VGA in, HDMI in (2x), Composite in

  Epson iProjection App

  Ad-Hoc / Infrastructure

• Advanced Features

  Security

  Kensington lock, Security cable hole, Wireless LAN unit lock, Password protection

  2D Colour Modes

  Dynamic, Cinema, Presentation, sRGB, Blackboard

  Other features

  AV Mute Slide, Auto source search, Built-in speaker, Horizontal and vertical keystone correction, Long lamp life, Quick Corner, Split-Screen-Function

  Video Color Modes

  Blackboard, Cinema, Dynamic, Presentation, sRGB

• General

  Power consumption

  327 Watt, 225 Watt (economy), 0.3 Watt (standby), On mode power consumption as defined in JBMS-84 286 Watt

  Supply Voltage

  AC 100 V – 240 V, 50 Hz – 60 Hz

  Product dimensions

  302‎ x 252 x 92 mm (Width x Depth x Height)

  Product weight

  2.7 kg

  Noise Level

  Normal: 37 dB (A) – Economy: 28 dB (A)

  Supported Temperature

  Operation 5° C – 35° C, Storage -10° C – 60° C

  Supported Humidity

  Operation 20% – 80%, Storage 10% – 90%

  Included Software

  iProjection

  Options

  Soft carry case, Wireless LAN unit

  Loudspeaker

  2 Watt

  What’s in the box

  Computer cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card

  Room Type / Application

  Home Office, Home Photo, Sports, Streaming, TV & Box sets

  Positioning

  Ceiling Mounted, Desktop

  Colour

  White
