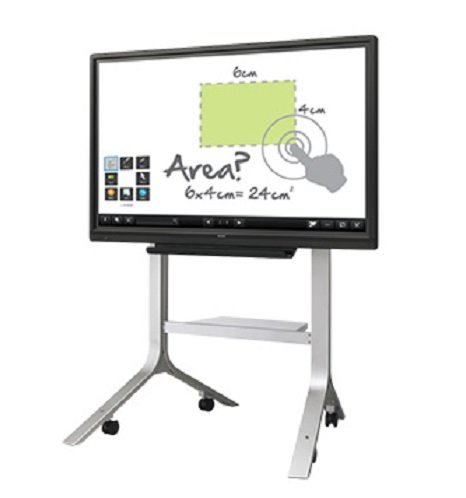

| Model Name | PN-70SC3 | |
|---|---|---|
| Installation | Landscape | |
| Installation | 70-inch-class (69 1/2-inch [176.6 cm] diagonal) UV2A*1Â LCD | |
| Max. Resolution | 1920 x 1080 pixels | |
| Max. Display Colours (approx.) | 16.77 million colours | |
| Pixel Pitch (H x V) | 0.802 x 0.802 mm | |
| Max. Brightness (average)*2 | 300 cd/m2 | |
| Contrast Ratio | 3,000 : 1 | |
| Viewing Angle (H/V) | 160°/160° (CR 10) | |
| Active Screen Area (W x H) (approx.) | 1,538.9 x 865.6 mm (60 9/16″ x 34 1/16″) | |
| Response Time | 6 ms (grey to grey, avg.) | |
| Backlight | LED, edge lit | |
| Touchscreen | Touch Technology | IR (infrared blocking detection method) |
| PC Connection Port | USB 2.0 | |
| Power Supply | Supplied from USB port | |
| Multi Touch | 6 points | |
| Protection Glass | Thickness: Approx. 3.4 mm*3Â Â Â Â Shock resistance: 130 cm*4 | |
| Touch Pen | Function Button | N/A (passive pen) |
| Computer Input | Video | Analogue RGB (0.7 Vp-p) [75Ω] |
| Synchronisation | Horizontal/vertical separation (TTL: positive/negative) | |
| Plug & Play | VESA DDC2B | |
| Video Colour System | NTSC (3.58 MHz) / NTSC (4.43 MHz) / PAL / PAL60 / SECAM | |
| Input Terminals*5 | PC analogue: Mini D-sub 15-pin x 1, HDMITM x 3 (HDCP and 1080p compatible, PC / AV signal compatible), 3.5 mm-diameter mini stereo jack x 1, RCA pin (L/R) x 2, video: RCA pin x 2*6, component video: RCA pin x 1*6, RS-232C D-sub 9-pin x 1 |
|
| Output Terminals*5 | Audio: RCA pin (L/R) x 1 | |
| Speaker Output | 10 W + 10 W | |
| Mounting | VESA (4 points), 400 mm pitch, M6 screw | |
| Power Supply | 100V – 240V AC, 50/60 Hz | |
| Power Consumption | 235 W | |
| Environmental Conditions | Operating Temperature | 5°C to 35°C |
| Operating Humidity | 20% to 80% RH (no condensation) | |
| Dimensions (W x D x H) (approx.) (display only) | 1,633 x 109 x 994.5 mm (64 5/16″ x 4 5/16″ x 39 1/8″) | |
| Weight (approx.) | 56 kg (123.5 lbs) | |
| Main Accessories | AC power cord (3-pin), remote control unit, batteries (AA size x 2), SHARP Pen Software CD-ROM, set-up manual, cable clamps x 2, USB cable*7, eraser, pen tray, touch pen (without function button), blank sticker |
|
