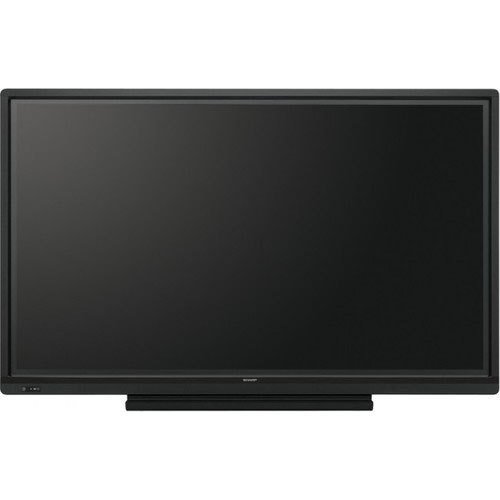

SHARP PN-50TC1 Interactive Display Panel (Touchscreen Whiteboard)

The PN-50TC1 employs a full-flat design with 10-point multi-touch functionality. It provides a smooth, quick response for writing and touch gestures, while delivering full HD (1,920 × 1,080-pixel) resolution. Sized at 50 inches, the PN-50TC1 is just right for smallmeeting spaces.-ONE YEAR WARRANTY

$710,37

Guaranteed Safe Checkout

Features & Compatibility

Installation Landscape / Portrait / Face-up
LCD Panel Max. Resolution 50-inch-class widescreen (49 1/2-inch [125.7 cm] diagonal) TFT LCD
Max. Display Colours (approx.) 1,920 x 1,080 pixels
Pixel Pitch (H x V) 16.77 million colours
Max. Brightness (average)*1 0.571 x 0.571 mm
Contrast Ratio 400 cd/m2
Viewing Angle (H/V) 5,000 : 1
Active Screen Area (W x H) (approx.) 178°/178° (CR 10)
Response Time 1,095.8 x 616.4 mm (43 1/8” x 24 1/4“)
Backlight 9.5 ms (grey to grey, avg.)
Touchscreen Touch Technology Capacitive touch
PC Connection Port USB (2.0 compliant) (Type B) x 1
Power Supply Supplied from main unit
Multi Touch 10 points
Protection Glass Thickness: approx. 3.2 mm*2 Shock resistance: 130 cm*3
Computer Input Video Analogue RGB (0.7 Vp-p) [75Ω], HDMI, DisplayPort
Synchronisation Horizontal/vertical separation (TTL: positive/negative)
Plug & Play VESA DDC2B
Power Management VESA DPMS
Input Terminals*4 PC analogue: Mini D-sub 15-pin x 3, HDMI x 2 (HDCP and 1080p compatible, PC/AV signal compatible),
DisplayPort (HDCP compatible, PC signal compatible) x 1, 3.5 mm-diameter mini stereo jack x 1, RS-232C x 1
Output Terminals*4 3.5 mm-diameter mini stereo jack x 1
Input/Output Terminals*4 LAN port (10Base-T/100Base-TX) x 1
USB Hub Function USB 2.0 (Type A) x 2
Expansion Slot 12 V, 2.5 A (power supplied when expanding the functions with an optional board)
Speaker Output 10 W + 10 W
Mounting VESA (4 points), 400 x 200 mm, M6 screw
Power Supply 100 V – 240 V AC, 50/60 Hz*5
Power Consumption 105 W
Environmental Conditions Operating Temperature*6 5˚C to 35˚C
Operating Humidity 20% to 80% RH (no condensation)
Dimensions (W x D x H) (approx.) (display only) 1,151 x 68.5 x 686 mm (45 5/16” x 2 11/16” x 27″)
Weight (approx.) 28 kg (61.7 lbs)
Main Accessories Power cord, remote control unit, battery (AAA size) x 2, cable clamp x 3, CD-ROM, SHARP Display Connect license x 1, setup manual, touch pen, pen tray, tray mounting screw x 2, camera mount screw x 2, USB cable*7, camera mount, camera screw, logo sticker, vertical sticker (operation panel)
