SAMSUNG QM85D 85″ DIGITAL SIGNAGE

  • 85″ UHD display solution that offers hyper-realistic and immersive visual experience
  • Support for Display Port (DP) 1.2 and SBB compatibility to display various UHD content
  • Flexible split-screen and pivot functionality that allows for dynamic scenarios

$13.196,85

Guaranteed Safe Checkout

Features & Compatibility

Panel

  • Diagonal Size85″
  • Type120Hz Slim Direct LED BLU
  • Resolution3840*2160 (4K UHD)
  • Pixel Pitch(mm)0.1625 x 0.1625 (mm)
  • Active Display Area(mm)1872.0(H) x 1053.0(V)
  • Brightness(Typ.)500 nit
  • Contrast Ratio5000:1
  • Viewing Angle(H/V)178/178
  • Response Time(G-to-G)6ms(Typ.)
  • Display Colors16.7M(True Display) / 1.07B(Ditherd 10bit)
  • Color Gamut72%
  • Haze2%

Display

  • Dynamic C/R50,000:1
  • H-Scanning Frequency30 ~ 81kHZ
  • V-Scanning Frequency48 ~ 75HZ
  • Maximum Pixel Frequency148.5MHz

Sound

  • Speaker TypeBuilt in Speaker(15W + 15W)

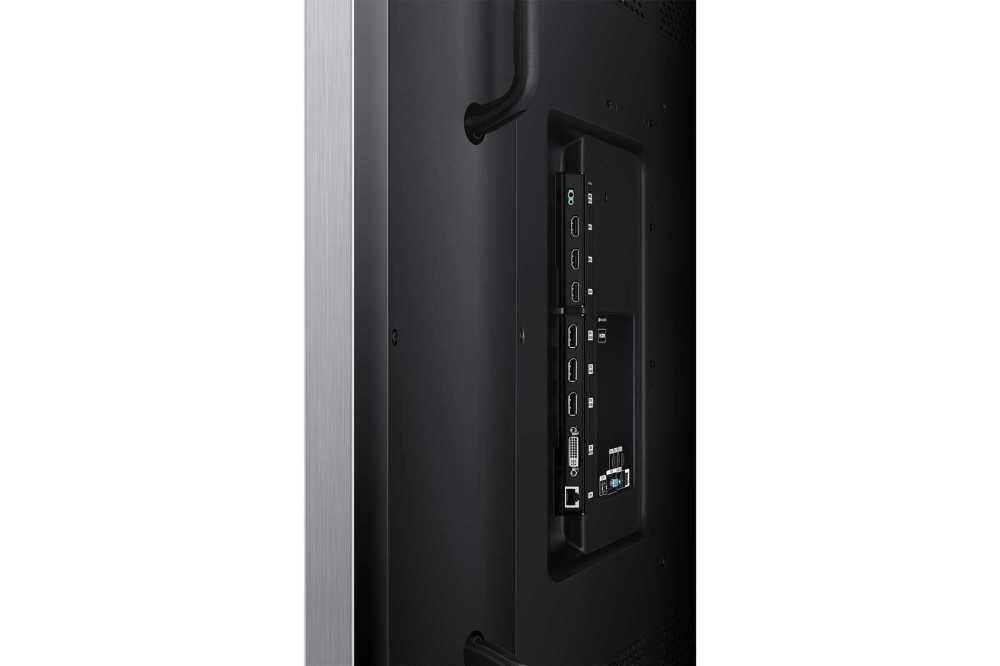

Connectivity

Input
  • RGBD-Sub, DVI-D, Display Port 1.2 (2), Display Port 1.1 (1)
  • VideoHDMI (3)
  • HDCPHDCP1.4 (→ support UHD 30hz)
  • AudioStereo mini Jack
  • USBUSB (S/W update only)
Output
  • RGBN/A
  • VideoN/A
  • AudioStereo mini Jack
  • Power OutN/A
  • External ControlRS232C(in/out), RJ45
  • External SensorIR
  • TunerNo

Power

  • TypeInternal
  • Power SupplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]495
  • Typical[W/h]375
  • BTU(Max)1687.95
  • Sleep modeless than 0.5W
  • Off modeless than 0.5W

Mechanical Specification

Dimension (mm)
  • Set1903.4 X 1090.5 X 105.1
  • Package2050 x 1265 x 472
Weight (kg)
  • Set55.5
  • Package71.4
  • VESA Mount (mm)600×400
  • Mounting HoleN/A
  • Protection GlassN/A
  • Stand TypeFoot Stand (Optional)
  • Media Player Option TypeSBB
  • Bezel Width (mm)(Top)13.2/(Side)13.2/(Bot)19.3

Operation

  • Recommended Usage Hours16/7
  • Operating TemperatureN/A  ℃  ~   N/A   ℃
  • Humidity10  %  ~   80   %

Feature

  • Key FeaturesUHD LFD Display
  • Special Features(HW) Temperature Sensor,Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker(15W 2ch) (SW) FHD 4 PBP Support (2/3/4 PBP), Auto Source Switching & Recovery, LFD Home UI, Remote F/W update (MDC, MagicInfo Server) Button Lock, DDC CI, DHCP with RJ45 MDC, Urgent Message by MDC, Hot key option, Plug&Play (Initial Setting)
Internal Player
  • ProcessorN/A
  • On-Chip Cache MemoryN/A
  • Clock SpeedN/A
  • Main Memory InterfaceN/A
  • GraphicsN/A
  • Storage (FDM)N/A
  • MultimediaN/A
  • IO PortsN/A
  • Operating SystemN/A

Certification

  • Safety60950-1
  • EMCClass A

Accessory

  • IncludedQuick Setup Guide, Warranty Card, DP cable, Power Cord, Remote Controller, Batteries
Optional
  • Stand
  • MountWMN8200SD
  • SpecialtyOverlay Touch CY-TQ85LDA

Media Player

Media Player
  • Media PlayerSBB-DA/DI (Optional)

Additional information

Weight 71,4 kg
Dimensions 205 × 126,5 × 47,2 cm
