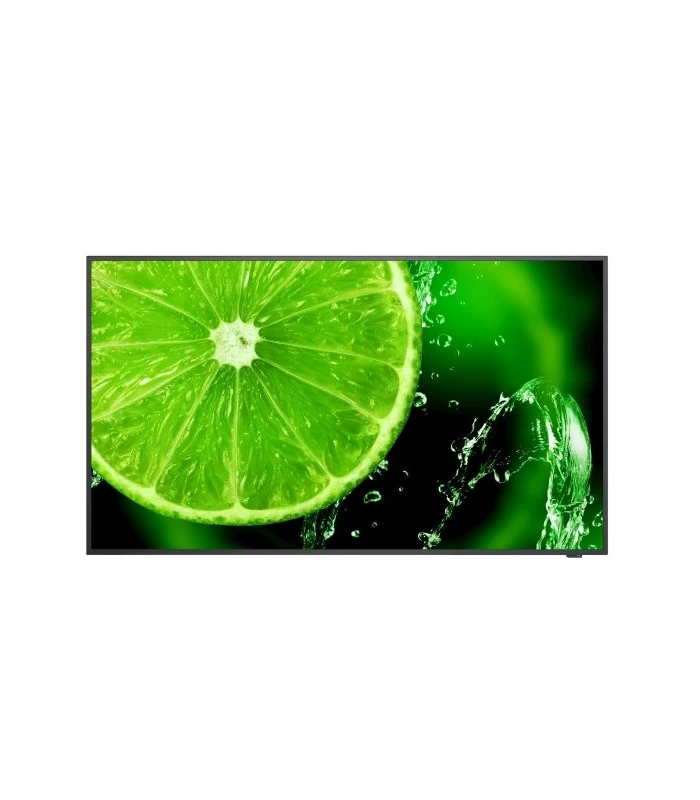

NEC MultiSync E558 LCD 55” Display

NEC MultiSync E558 LCD 55” Display

Resolution  – 3840*2160

LCD 55”  Display

Guaranteed Safe Checkout

Features & Compatibility

NEC MultiSync E558 LCD 55” Essential Large format Display

Functionality you need, at the price you want

A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want.

An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.

For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.

Benefits

  • Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
  • Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
  • Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
  • Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
  • Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
  • DISPLAY
    Panel Technology IPS with Direct LED backlights
    Active Screen Area (W x H) [mm] 1,210 x 680
    Screen Size [inch/cm] 54.6 / 139
    Aspect Ratio 16:9
    Pixel Pitch [mm] 0.315
    Brightness [cd/m²] 350
    Contrast Ratio (typ.) 1200:1
    Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
    Colour Depth [bn] 1.073 (10bit)
    Response Time (typ.) [ms] 8
    Panel Refresh Rate [Hz] 60
    Haze Level [%] Standard (1)
    Supported Orientation Landscape
    SYNCHRONISATION RATE
    Horizontal Frequency [kHz] 15 – 136
    Vertical Frequency [Hz] 24 – 75
    RESOLUTION
    Native Resolution
    3840 x 2160
    Supported Resolutions
    1280 x 720;1920 x 1080;1920 x 1200;3840 x 2160;4096 x 2160;640 x 480;720 x 480;720 x 576
    CONNECTIVITY
    Input Video Analogue 1 x VGA; Component (RCA); Composite (RCA)
    Input Video Digital 3 x HDMI
    Input Audio Analogue 1 x 3,5 mm jack
    Input Audio Digital 3 x HDMI
    Input Control LAN 100Mbit; RS232
    Input Data 1 x USB 2.0 (MediaPlayer); 1 x USB Typ-C (5V/3A, power for external devices)
    Output Audio Analogue 1 x 3,5 mm jack
    Output Audio Digital 1 x SPDIF
    Remote Control Remote Control IR; RS-232C (9-pin D-sub) Input
    SENSORS
    Ambient Light Sensor Integrated, triggered actions programmable
    Temperature Sensor Integrated, 1 sensors, triggered actions programmable
    ELECTRICAL
    Power Consumption Eco/max. [W] 105 shipping
    Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
    Power Supply 100-240 V AC; 50/60 Hz; internal
    ENVIRONMENTAL CONDITIONS
    Operating Temperature [°C] +0 to +40
    Operating Humidity [%] 10 to 80
    Storage Humidity [%] 5 to 85
    Storage Temperature [°C] -10 to +60
    MECHANICAL
    Dimensions (W x H x D) [mm] Without stand: 1,238.6 x 717.7 x 72
    Weight [kg] Without stand: 16.8
    Bezel Width [mm] 12.5 (left, right and top); 13.9 (bottom)

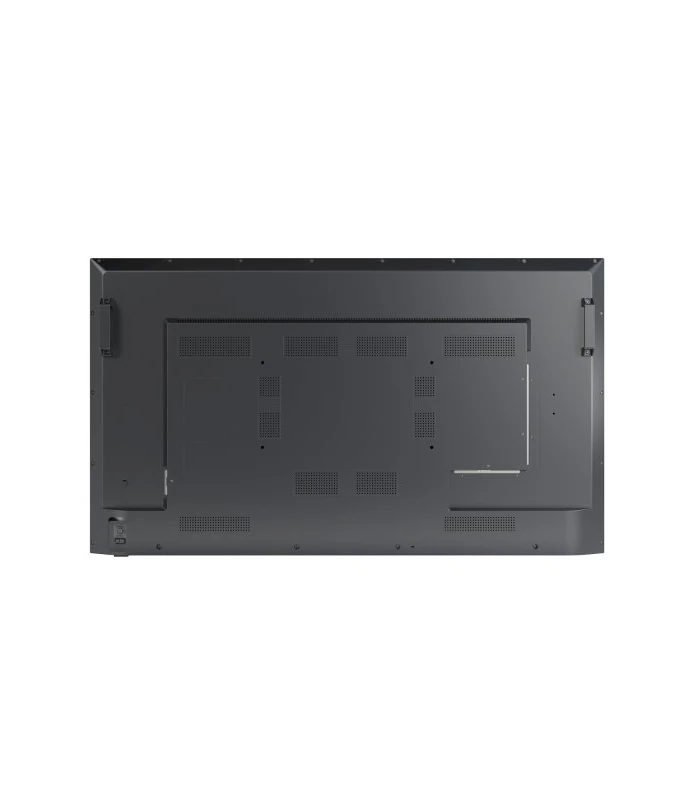

    VESA Mounting [mm] 4 holes; 400 x 200 (FDMI); M6
    MEDIAPLAYER
    Supported File Storage / File System USB 2.0 / FAT16, FAT32
    Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
    Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840×2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840×2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
    Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s
    AVAILABLE OPTIONS
    Accessories Feet (ST-55E); Trolley (PDMHM-L); Wall mount (PDW S 32-55L)
    GREEN FEATURES
    Energy Efficiency Energy consumption: 76 kWh/1000 h; Energy efficiency class: G; LED backlight
    Ecological Standards EnergyStar 8.0
    ADDITIONAL FEATURES
    Special Characteristics Ambient Light Sensor; Audio settings with equalizer; CEC Support; Colour temperature mode; Display Browser Control; Energy saving picture mode; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); Mac and Windows compatible; NaViSet Administrator 2; Powered USB-Port; Retail picture mode; Scheduler; SNMP Support; USB Media Player
    Colour Versions Black Front Bezel, Black Back Cabinet
    Safety and Ergonomics EMC Class B; Energy Star 8; FCC; PSB; RCM; TÜV S; UL/C-UL; VCCI
    Audio Integrated Speakers (10 W + 10 W)
    Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
    Warranty 3 years warranty incl. backlight
    Operating Hours 16/7
