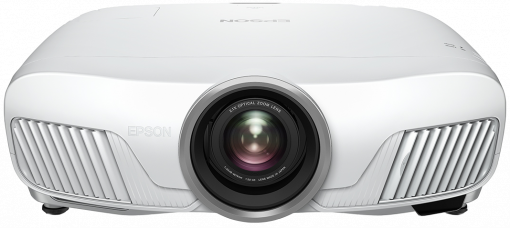

Epson EH‑TW740 Projector

Tech Specs

Product features and specifications are subject to change without prior notice.

If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

• Technology

  Projection System

  3LCD Technology, RGB liquid crystal shutter

  LCD Panel

  0.61 inch with MLA (D10)

• Image

  Color Light Output

  3,300 Lumen- 2,200 Lumen (economy) In accordance with ISO 21118:2013

  White Light Output

  3,300 Lumen – 2,200 Lumen (economy) In accordance with ISO 21118:2013

  Resolution

  Full HD 1080p, 1920 x 1080, 16:9

  High Definition

  Full HD

  Aspect Ratio

  16:9

  Contrast Ratio

  16,000 : 1

  Light source

  Lamp

  Lamp

  UHE, 210 W, 6,000 h durability, 12,000 h durability (economy mode)

  Keystone Correction

  Auto vertical: ± 30 °, Manual horizontal ± 30 °

  Colour Video Processing

  10 Bits

  2D Vertical Refresh Rate

  192 Hz – 240 Hz

  Colour Reproduction

  Upto 1.07 billion colours

• Optical

  Throw Ratio

  1.21 – 1.63:1

  Zoom

  Digital, Factor: 1 – 1.35

  Lens

  Optical

  Screen Size

  30 inches – 386 inches

  Projection Distance Wide/Tele

  1.21 m – 1.63 m ( 60 inch screen)

  Projection Lens F Number

  1.44

  Projection Lens Focal Length

  16.7 mm

  Projection Lens Focus

  Manual

  Offset

  14 : 1

• Connectivity

  USB Display Function

  2 in 1: Image / Mouse

  Interfaces

  USB 2.0 Type A, USB 2.0 Type B, HDMI in, Wireless LAN IEEE 802.11b/g/n (optional), Stereo mini jack audio out

  Epson iProjection App

  Ad-Hoc / Infrastructure

• Advanced Features

  Security

  Kensington lock, Security cable hole, Password protection

  3D

  No

  2D Colour Modes

  Dynamic, Cinema, Bright Cinema

  Other features

  AV Mute Slide, Automatic keystone correction, Built-in speaker, Horizontal and vertical keystone correction, MHL audio/video interface, Quick Corner, Split-Screen-Function

  Video Color Modes

  Cinema, Dynamic, Game, Bright Cinema

• General

  Power consumption

  327 Watt, 225 Watt (economy), 0.3 Watt (standby), On mode power consumption as defined in JBMS-84 286 Watt

  Supply Voltage

  AC 100 V – 240 V, 50 Hz – 60 Hz

  Product dimensions

  302‎ x 252 x 92 mm (Width x Depth x Height)

  Product weight

  2.8 kg

  Noise Level

  Normal: 37 dB (A) – Economy: 28 dB (A)

  Supported Temperature

  Operation 5° C – 40° C, Storage 10° C – 60° C

  Supported Humidity

  Operation 20% – 80%, Storage 10% – 90%
  If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

  Included Software

  iProjection

  Options

  Wireless LAN unit

  Loudspeaker

  2 Watt

  What’s in the box

  Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card

  Room Type / Application

  Gaming, Home Cinema, Home Photo, Sports, Streaming, TV & Box sets

  Positioning

  Ceiling Mounted, Desktop

  Colour

  White
