High brightness with extreme efficiency

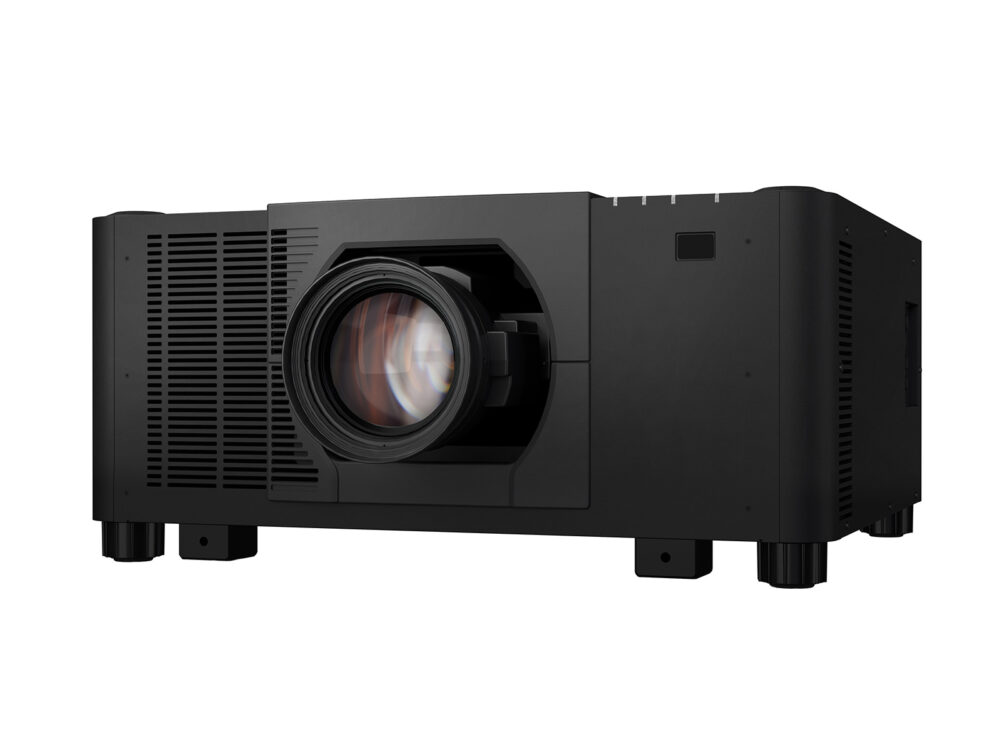

For long-lasting imaging performance at high brightness with movie-quality colour rendition, the Sharp A201U encapsulates efficiency. Every aspect of its design forges maximum productivity, achieving remarkable performance alongside impressive cost, space and energy saving.
Born of NEC heritage, the A201U presents the same high quality Japanese design and engineering standards as its predecessor, the NEC PA Series, delivering on Sharp/NEC’s promise of quality, service and sustainability. This next generation model utilises legacy PA Series lenses securing against e-waste and reducing costs.
The first and only LCD projector featuring RB laser technology, this innovative solution is highly efficient in producing the most intensely natural tones, minimising power consumption whilst delivering brilliant, almost DCI-P3 colour performance at high brightness levels. Consistently superior imaging quality is safeguarded with an IP5X rated optical engine, sealed against even the finest dust particles and eliminating maintenance demands.
Featuring advanced installation capabilities, easily managed with full ProAssist support, the compact Sharp A201U delivers the reliability, functionality and value as demanded by higher education, corporate, leisure and museum applications.
Benefits
- No lamp replacement – up to 25,000 h maintenance free operation possible due to Laser Light Source.
- No filter service required – the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget
- Compact design – a large venue projector with a comparatively small footprint and light weight design.
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending.
Specifications
-
Projection Tech: 3LCD with Red+Blue laser — first LCD with RB laser, offering wide color gamut nearly covering DCI‑P3
-
Brightness: 20,000 ANSI lumens (21,000 center)
-
Resolution: Native WUXGA (1920 × 1200); 4K60P input via processing/scaler
-
Contrast: Dynamic 3,000,000 : 1
-
Light Source: RB laser, 25,000 hr (no lamp/filter), sealed IP5X optical engine
-
Lens: 6 motorized bayonet lenses, zoom/focus/shift with memory; lens shift H ±25%, V ±65%
-
Geometry & Flexibility: Keystone ±40°/±30° manual, edge blending, stacking, tiling, portrait/free-tilt, ProAssist calibration & camera-based blending
-
Connectivity: 2× HDMI 2.0 (HDCP 2.2), HDBaseT in/out (with repeater), 3G/HD/SD‑SDI, USB‑A (power), RS‑232, LAN, IR, DDC/CI
-
Dimensions & Weight: 650×311×661 mm, ~38.7 kg (85.3 lb, body only)
-
Power & Noise: 1,530 W (normal), 1,400 W (eco), <0.9 W standby; fan noise normal/eco ~42/34 dB
-
Operating Range: 0–45 °C, 20–80% RH; altitude up to 3,650 m
