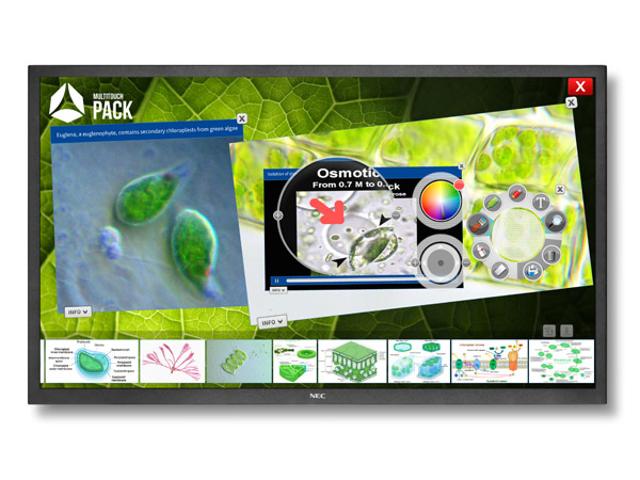

NEC V801IRT 80″ FullHD Touch Interactive TV Display

NEC MultiSync® V801 IRT is the new multi touch product of NEC’s V Series boasting 80″ in size and delivering true multi touch  support with up to 6 simultaneous touch points. Thanks to the anti-reflective coating, reflections are reduced to a minimum which significantly increases the readability of the content shown. The OPS option slot, e.g. a slot-in PC, helps to save space, no cables are required. The NEC MultiSync® V801 IRT is ideal for any kind of interactive whiteboard application in corporate meeting rooms and class rooms.

BENEFITS Multi-Touch – true multi-touch support with up to 6 simultaneous touch points for all major operating systems. Cell Imaging Touch – infrared based technology offering stable and superior multi-touch performance with high sample rates and touch point accuracy. Calibration-free – due to robust and accurate design, no drift, mechanical alignment or temperature issues. No re-calibration of the touch system necessary. Static Object Detection and Rejection – Cell Imaging Technology can recognize the size of an object used to provide corresponding reaction. Possible usage with finger, gloved hand and stylus. Protective Glass – single anti-reflection coating for perfect visibility, premium toughened glass for security. Future Ready with OPS Cable Free Expansion – upgrade the power of your display at any time without the need for external cables or devices. Free Download of Multi-Display Management Software – with NaViSet Administrator 2 you can manage all your connected display devices from a centralized location. Free DisplayNote Multiuser Licence – present, share, collaborate with up to 5 participants across multiple devices

NEC MultiSync® V801 IRT (Multi-Touch) –

Technical Specification DISPLAY Panel Technology UV² A with Edge LED backlight Screen Size [inch/cm] 80 / 203.2 Aspect Ratio 16:9

Brightness (shipping) [cd/m²] 320, (460 max)

Contrast Ratio (typ.) 5000:1 Viewing Angle [°] 176 horizontal / 176 vertical (typ. at contrast ratio 10:1)

Response Time (typ.) [ms] 6 (grey-to-grey) Panel Refresh Rate [Hz] 60 Supported Orientation Landscape;

Portrait SYNCHRONISATION RATE Horizontal Frequency [kHz] 31.5 – 91.1 (analog and digital) Vertical Frequency [Hz] 50 – 85 RESOLUTION

Native Resolution 1920 x 1080 at 60 Hz Supported on digital and analogue inputs (PC) 1600 x 1200; 1360 x 768; 1280 x 1024; 1280 x 768; 1024 x 768; 832 x 624; 800 x 600; 720 x 400; 640 x 480; 640 x 400 Supported on digital inputs (Video) 1920 x 1080i (59.94/60)16:9; 1920 x 1080i (59.94/60)16:9; 720 x 576p (50)16:9; 720 x 576p (50)16:9; 720 x 576p (50)16:9; 720 x 576p (50)16:9; 720 x 576p (50)16:9; 720 x 576p (50)16:9; 720 x 576p (50)16:9; 720 x 576p (50)16:9; 720 x 576p (50)16:9 CONNECTIVITY
