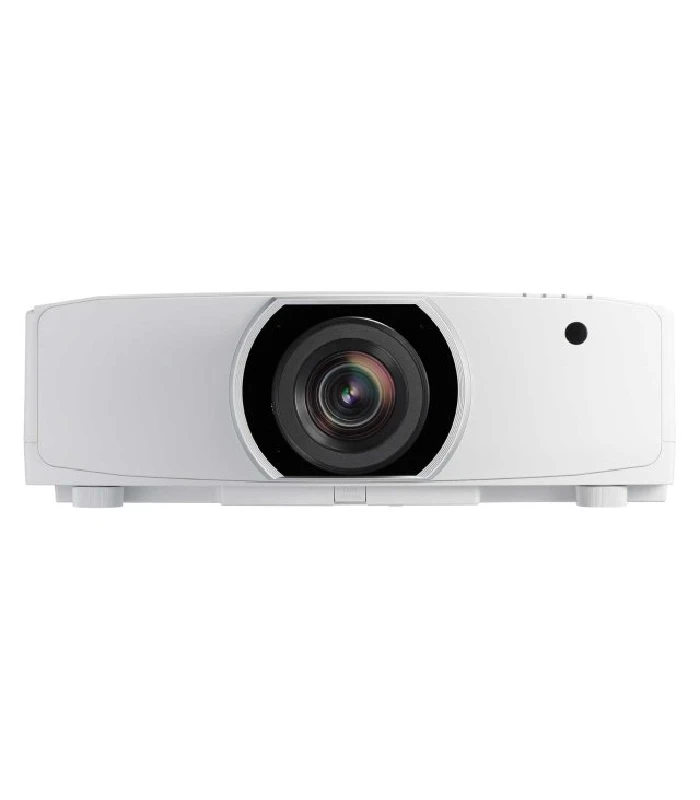

NEC PA853W 8500 Lumens WXGA Projector

NEC NP-PA853W + NP13ZL Lens Professional Installation Projector Features:

Type	LCD
Brightness [AL]	8500
Contrast	10000:1
Resolution	1280 x 800
Light Source	Lamp
Lamp Life [h]	5000

$3.401,25

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

NEC PA853W Projector 8500 Lumens WXGA Projector is a 8500 lumen widescreen advanced professional installation model that appeases higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. NEC PA853W Projector Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge blending and stacking. The HDBaseT input and separate HDBaseT loop out provide single connections for uncompressed full HD digital video, audio, ethernet power and various cont

4K Ready – NEC PA853W ProjectorDisplay stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs
Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Loop Out
Utilization of the optional MultiPresenter Stick provides those looking for a network connection easy connection with up to 12 devices at once. (Win, MAC, Android, iOS) Screen mirroring for Android and Win. Simple annotation software
High performance video processing/scaling creates life-like images
Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
8500-lumen brightness enhances images for most applications

NEC PA853W Projector Specifications

Display

Aspect Ratio	16×10	Native Resolution	WXGA 1280×800
Maximum Resolution	4K 4096 x 2160	Contrast Ratio (typical)	10,000:1 with auto iris

Synchronization Range

Horizontal (Analog/Digital)	Analog: 15-100kHz, Digital: 15-153kHz	Vertical	Analog: 48-120Hz, Digital: 24-120Hz

Signal Compatibility/Connectivity

Supported Video Standards	NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM	SD/HD Video Signal Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA	Macintosh Signal Compatibility	Yes
Sync Compatibility	Separate Sync / Composite Sync / Sync on G	External Control	RS-232, IR, HDBaseT, DDC/CI, USB

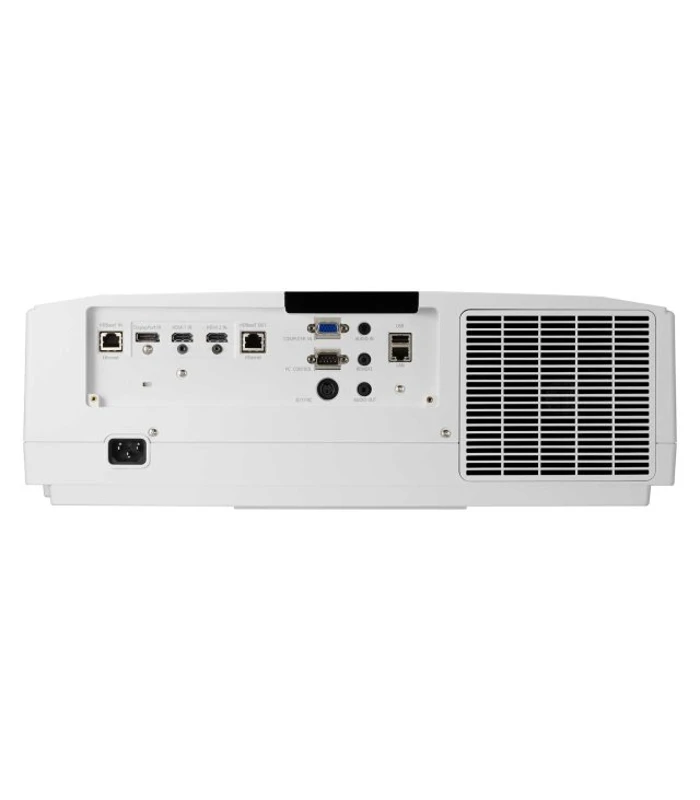

Input Terminals RGB1(analog): VGA 15-pin D-sub RGB2(digital): HDMI w/HDCP (V2.2) RGB3(digital): HDMI w/HDCP (V2.2) RGB4(digital): DisplayPort w/HDCP (V1.4) RGB5(digital): HDBaseT w/HDCP (V2.2) Audio 1: Stereo Mini Jack		Output Terminals Audioout: Stereo Mini Jack Monitor Out: HDBaseT

Power Consumption (typical)

On	566W / 390W / 0.7W / 0.3W	Input Current	6.2-3.1A
Power Requirements	100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD) Product: 19.8 x 16.2 x 6.6 in. / 503 x 411 x 168mm		Weight Net Weight: 22.5 lbs. / 10.2 kg

Environmental Conditions

Operating Temperature	41-104°F / 5-40°C	Storage	-14-122°F / -10-50°C

Limited Warranty (parts & labor)

Registered owners receive a 3-year parts and labor warranty including InstaCare next business day exchange. One year on lamp.

Additional Features

4K Ready Powered Lenses Manual Keystone Correction 3D Stereo Geometric Correction 10,000 hour Filter Life Quick power on ECO Mode Technology DiCom Simulation Edge Blending Stacking Virtual Remote DisplayNote NaViSet Administrator 2 Quick power-off Picture-in-Picture Advanced AccuBlend AutoSense

Optical

Display Technology	0.76″ LCD w/ MLA	Light Output(Lumens)	8500 normal
Lamp Type	420W AC	Lamp Life (up to)	3000 hours normal / 5000 hours eco
Screen Size (diagonal)	40 to 500 in. / 1.02 to 12.7m	Projection Distance	2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle	10.3 to 10.8° tele / 13.7 to 14.5° wide	Lens Zoom: Variable Focus: Power F number, fnumber: Variable
Keystone Correction	+/- 40° horizontal, +/- 30° vertical

Mechanical

Installation Orientation	Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear	Fan Noise	39 dB normal / 33 dB eco
Regulations	USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014)	Optional Lenses	NP11FL, NP12ZL, NP13ZL, NP14ZL, NP30ZL, NP40ZL, NP41ZL, NP42ZL
