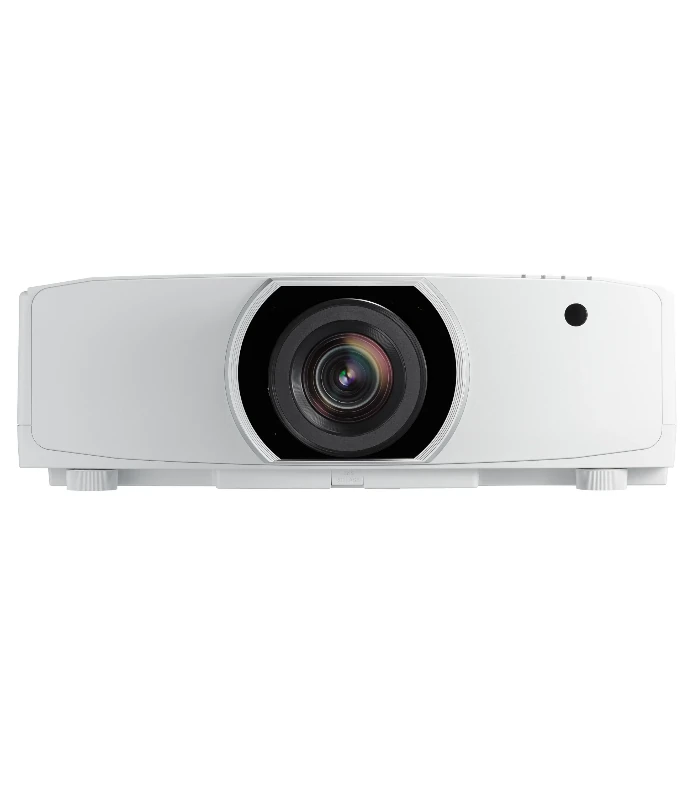

NEC PA803UL Projector Details
NEC PA803UL Projector Description
The NEC PA803UL Projector – combining laser, LCD and filter-free!
NEC has launched the world’s first filter-free laser projector using LCD technology.
With this unique combination, the brilliant colour brightness of LCD technology is coupled with the laser light source designed for long lasting operation. What’s more, with a completely sealed optical engine there is no filter needed at all. As result, service costs are dramatically reduced and with no dust to contaminate the LCD panels, you can enjoy consistently brilliant colour brightness. In addition, the PA series laser projector delivers incredible picture quality, impressive visualisation capabilities and powerful, cost-conscious installation opportunities.
The NEC PA803UL projector is mainly targeting corporate and higher education users to equip their large meeting rooms, conference rooms and lecture halls.
To reduce your installation costs, the projectors can be ordered bundled with the NP41ZL standard lens, which meets the projection requirements of 90% of all installations!
Bundle order code: 40001150
Benefits
- No filter service required for NEC PA803UL Projector – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
- Hassle-free remote adjustment – motorized lens shift, focus and zoom allows easy and flexible setup without the need for cumbersome physical access to the projector.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.
- Cost conscious & powerful cabling – with just CAT6 network cabling, transfer content over up to 100m using HDBaseT connectivity standard. Supply multiple projectors with one source and benefit from the unique HDBaseT-out daisy-chain interface.
- Impress with brilliant colours & contrast – astound your audience as the projector processes a wider colour space with Rec2020 to Rec709 colour conversion and higher dynamic contrast supporting HDR10 standard via HDMI interface.
- Peace of mind copyright protected content – let the projector manage copyright protection and present 4k and Ultra HD Blu-ray content via the HDMI interface.
- Risk Group 2 saves you installation and operation effort – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.
NEC PA803UL Projector Specifications
- IMAGE
-
Projection Technology 3LCD Technology Native Resolution 1920 x 1200 (WUXGA)Aspect Ratio 16:10 Contrast Ratio 1 2500000:1 Brightness 1 8000 ANSI Lumen (approx. 80% in Eco Mode), with std. optional lense Lamp Laser Light Source Lamp Life [hrs] 20000 2 Lens 3 motorized lens options Lense Adjustment Motorized Lens shift H:±20, V:+10,-50 Keystone correction +/- 40° manual horizontal / +/- 40° manual vertical Projection Factor depending on lens selection (std. option NP41ZL at 1.3-3.02:1) Projection Distance [m] 0.7 – 50.9 Screen Size (diagonal) [cm] / [inch] (best performance range); Maximum: 1,270 / 500″ Zoom Motorized Focus Adjustment Motorized Supported Resolutions 4096 x 2160 (4k);2560 x 1600 (WQXGA);2048 x 1080 (2k);1920×1200 (WUXGA) – 640×480 (VGA);1080i/50/60;1080p/24/25/30/50/60;720p/60;720p/50;576i/50;576p/50;480p/60;480i/50Frequency Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 48-120 Hz - CONNECTIVITY
-
RGB (analog) Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr) Digital Input: 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Output: 1 x HDBaseT supporting HDCP 2.2Audio Input: 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support
Output: 1 x 3.5 mm Stereo Mini Jack (variable)Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet LAN 1 x RJ45 USB 1 x Type A (USB 2.0 high speed) 3D Sync Output: 1 x Mini DIN 3pin - REMOTE CONTROL
-
Remote Control 3D Setup; Aspect Ratio; Audio Control; Auto Adjust; DisplayPort; Eco Mode Control; Edge-Blending; Freeze-function; Geometric Correction; HDMI; Help-function; Magnify-function; Multiscreen; Page (up, down); PBP/POP Function; Picture Adjust; Picture Mute; PIP Function; Power (On-OFF); Select (up, down, left, right); Source Select; Test Picture - ELECTRICAL
-
Power Supply 100-240 V AC; 50 – 60 Hz Power Consumption [W] 774 (Normal) / 592 (Eco) / 0.7 (Network Stand-by) / 0.16 (Stand-by) - MECHANICAL
-
Dimensions (W x H x D) [mm] 580 x 208 x 494 (without lens and feet) Weight [kg] 18.2 Fan Noise [dB (A)] 35 / 45 (Eco / Normal) - ENVIRONMENTAL CONDITIONS
-
Operating Temperature [°C] 5 to 40 Operating Humidity [%] 20 to 80 non-condensing Storage Temperature [°C] -10 to 50 Storage Humidity [%] 20 to 80 non-condensing - ERGONOMICS
-
Safety and Ergonomics CE; EAC; ErP; RoHS; TUEV Type Approved - ADDITIONAL FEATURES
-
Special Characteristics 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Long Life Lamp; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI – Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs lamp life; Virtual Remote for direct PC control - GREEN FEATURES
-
Energy Efficiency ECO scheduler; Intelligent Power Management; Less than 0.3W Stand-By power; Longer lamp life; Software scheduling; Timer-Function Ecological Materials 100% recyclable packaging; Downloadable manuals Ecological Standards ErP compliant - WARRANTY
-
Projectors 3 years pan-European service Light Source 3 years or 10000h (whatever comes first) - SHIPPING CONTENT
-
Shipping Contents Cable Cover (NP11CV); IR Remote Control (RD – 466E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM - OPTIONAL ACCESSORIES
-
Optional Accessories 3 optional bayonet lenses; MultiPresenter Stick; Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF); XpanD 3D Glasses (X105-RF-X2); XpanD 3D RF Emitter (AD025-RF-X2) Lenses – motorized NP40ZL (0.79-1.11:1); NP41ZL (1.3-3.02:1); NP43ZL (2.99-5.93:1); NP44ML (0.32:1)
1 Compliance with ISO21118-2012 2 50% of initial brightness at the end of specified laser life time at 25 degree ambient temperature.

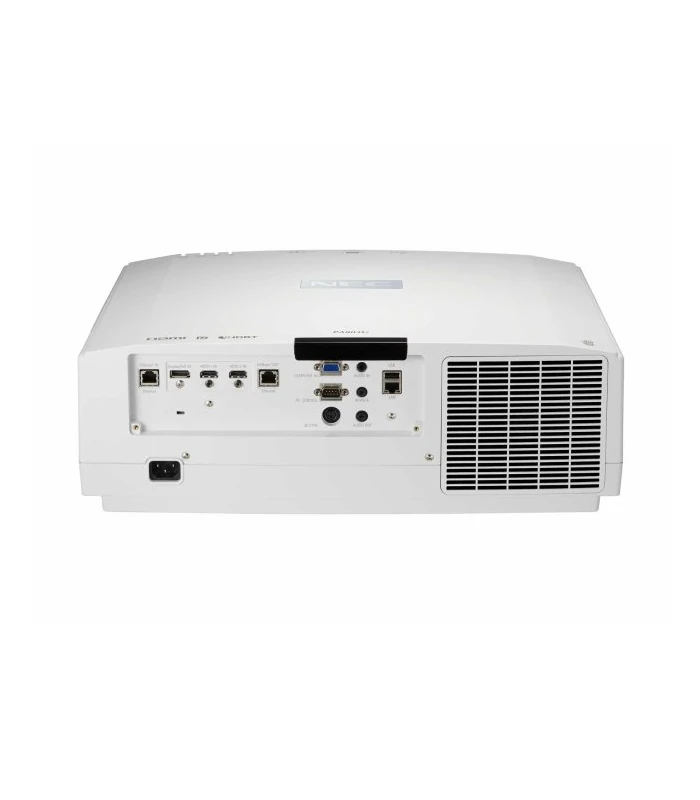

Connectors
- HDMI 1 IN
- HDMI 2 IN
- DisplayPort IN Connector
- COMPUTER IN (mini D-Sub 15 pin)
- COMPUTER AUDIO IN (Stereo Mini Jack)
- HDBaseT IN/Ethernet Port (RJ-45)
- HDBaseT OUT/Ethernet Port (RJ-45)
- AUDIO OUT (Stereo Mini Jack)
- USB (Type A)
- LAN (RJ-45)
- 3D SYNC Terminal (Mini DIN 3 Pin)
- PC CONTROL (D-Sub 9 pin)
- REMOTE (Stereo Mini Jack)
