Product Name
P603X
Product Group
Professional Projector
Order Code
60004331
Projection Technology
3LCD Technology
Native Resolution
1024 x 768 (XGA)
Contrast Ratio 1
20000:1
Brightness 1
6000 Normal / 3600 Eco ANSI Lumen; 6300 Centre Lumen
Lamp
330 W UHP AC
Lamp Life [hrs]
4000 (8000 Eco Mode)
Lens
F= 1.7–2.2, f= 17.4–29 mm
Lens shift
H:±0.15, V:+50,-0
Keystone correction
+/- 20° manual horizontal / +/- 30° manual vertical
Projection Factor
1.3 – 2.2 : 1
Projection Distance [m]
0.8 – 13.5
Screen Size (diagonal) [cm] / [inch]
Maximum: 762 / 300″; Minimum: 76 / 30″
Zoom
1 – 1.7; Manual
Focus Adjustment
Manual
Supported Resolutions
Up to 1920 x 1200 (WUXGA)
Frequency
Horizontal: 15–100 kHz (RGB: 24 kHz); Vertical: 50 – 120 Hz

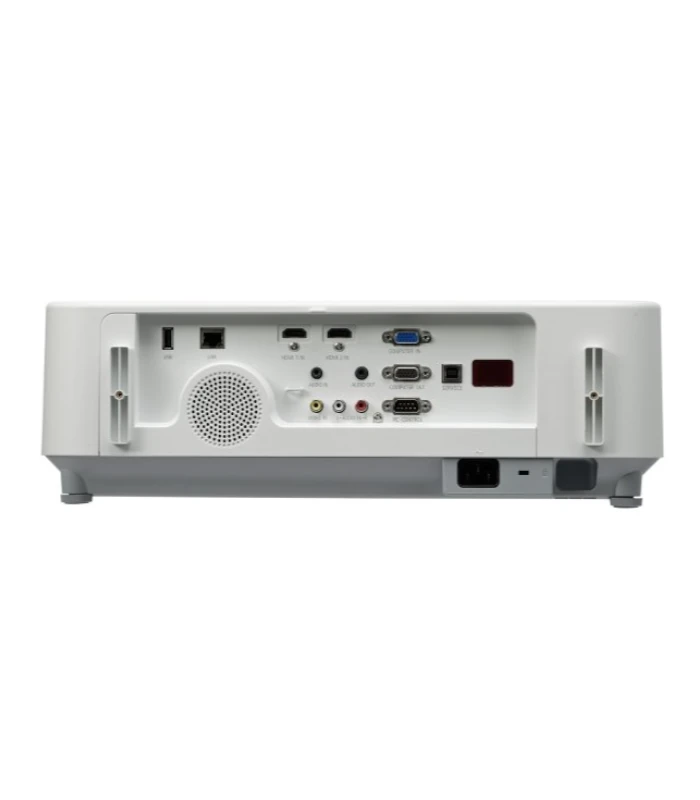

Connectivity
RGB (analog)
Input: 1 x Mini D-sub 15 pin
Output: 1 x Mini D-sub 15 pin
Output: 1 x Mini D-sub 15 pin
Digital
Input: 2 x HDMI™ (Deep Color, Lip sync) with HDCP
Video
Input: 1 x RCA
Audio
Input: 1 x 3.5 mm Stereo Mini Jack for Computer analog; 1 x RCA Stereo for Video and S-Video; 2 x HDMI audio
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control
Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN
1 x RJ45
USB
1 x Type A (USB 2.0 high speed); 1 x Type B
Video Signals
NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Esitys- ja hiiriohjaus; Freeze-function; Help-function; ID-asetus; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Source Select
Electrical
Power Supply
100-240 V AC; 50 – 60 Hz
Power Consumption [W]
414 (Normal) / 258 (Eco) / 2 (Network Stand-by) / 0.2 (Stand-by)
Mechanical
Dimensions (W x H x D) [mm]
420 x 133 x 322 (without lens and feet)
Weight [kg]
4.7
Fan Noise [dB (A)]
34 / 37 (Eco / Normal)
Environmental Conditions
Operating Temperature [°C]
5 to 40
Operating Humidity [%]
20 to 80 non-condensing
Storage Temperature [°C]
-10 to 50
Storage Humidity [%]
20 to 80 non-condensing
Ergonomics
Safety and Ergonomics
CE; ErP; RoHS; TüV GS
Speakers [W]
1 x 20 (mono)
Additional Features
Special Characteristics
Auto Power ON/OFF; Automaattinen Eco-tila; Carbon Savings Meter; Contrast Ratio 20000:1 with Iris; Control ID Function; DICOM Simulation; Direct Power-Off Function; Help Function; HTTP Browser Control; Kensington-turvalukko; Keypad Lock; LAN; Lens Shift (vertical 0 max/50 max, horizontal ± 15 max.); Magnify; Manual Wall Color Correction; NaViSet Administrator 2; Off-Timer; Optional User Logo; OSD with 27 languages; Password Security System; Pincushion Correction; Quick Start; Test Pattern; Unique Power Saving Functions; Up to 8,000 hrs lamp life; Virtual Remote for direct PC control
Green Features
Energy Efficiency
0.4W Power save mode; Auto ECO Mode; Green one touch ECO and AV mute button
Ecological Materials
Downloadable manuals; ECO packaging
Ecological Standards
ErP compliant; RoHs compliant
Warranty
Projectors
3 years pan-European service
Light Source
6 months, max. 1000 hrs
Shipping Content
Shipping Contents
IR Remote Control (RD-448E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Projector; Quick Setup Guide; Users Manual; Utility software
Optional Accessories
Optional Accessories
Cable Cover (NP12CV); Lamp (NP44LP); MultiPresenter Stick; Universal Ceiling Mounts (PJ01UCM); Wireless LAN module NP05LM2 (Europe), NP05LM4 (Russia)
1 Compliance with ISO21118-2012
