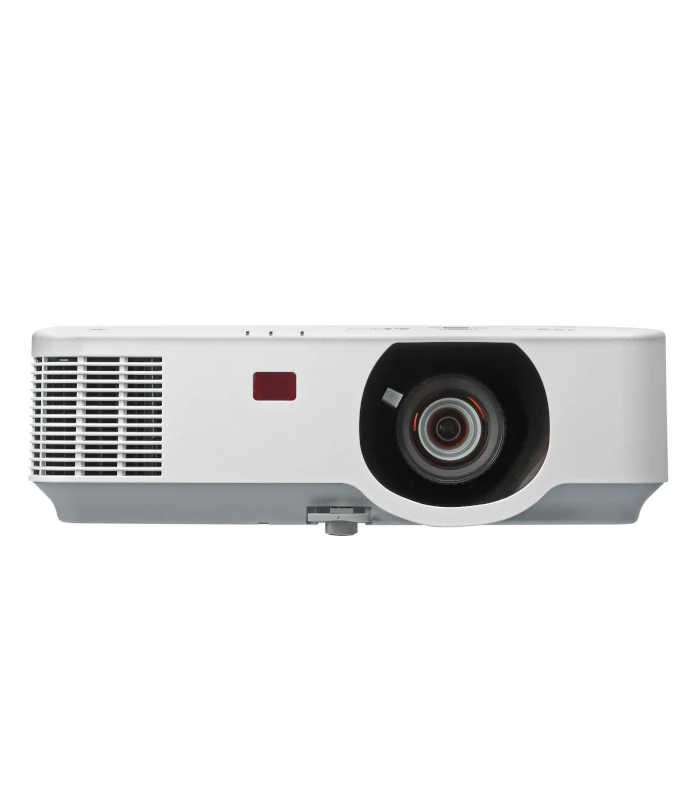

NEC P554U 5500 Lumens WUXGA Entry Level Projector

Nec P554U Entry level Professional installation Projector features:

Horizontal & Vertical lens shift enables flexible projector placement
Powerful 20W speakers provide volume needed for large rooms
Built-in HDBaseT enables simplified installations with a single cable for video and audio over long distances
Dual HDMI inputs (with HDCP) ensures quick switching between presentations
LAN connection for control and asset management over the network
Optional wireless display with MultiPresenter Stick
Variable audio-out allows the remote control to adjust speaker volume
20,000:1 Contrast Ratio creating extremely detailed images

Download Catalog PDF Click Here>

Original price was: $1.360,23.Current price is: $1.235,06.

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

NEC P554U 5500 Lumens WUXGA Entry Level Projector Description

NEC P554U 5500 Lumens WUXGA Entry Level Projector, P Series is ideal for higher education classrooms, corporate boardrooms and rental where bright, sharp images are required. The NEC P554U includes advanced installation features such as horizontal & vertical lens shift and HDBaseT connectivity that provide greater installation flexibility. Adding horizontal & vertical keystone correction along with cornerstone and pincushion adjustment ensures the image will be square on the screen even if installation challanges exist. The long life lamp reduces maintenance and lowers total cost of ownership.

Specifications:

Display

Aspect Ratio	16×10	Native Resolution	WUXGA 1920×1200
Maximum Resolution	WUXGA 1920 x 1200	Contrast Ratio (typical)	20,000:1

Synchronization Range

Horizontal (Analog/Digital)	15-100 kHz (RGB: 24 kHz or over)	Vertical	50-120 Hz

Signal Compatibility/Connectivity

Supported Video Standards	NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM	SD/HD Video Signal Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA	Macintosh Signal Compatibility	Yes
Sync Compatibility	Separate Sync / Composite Sync / Sync on G	External Control	RS-232, IR, DDC/CI, USB, LAN

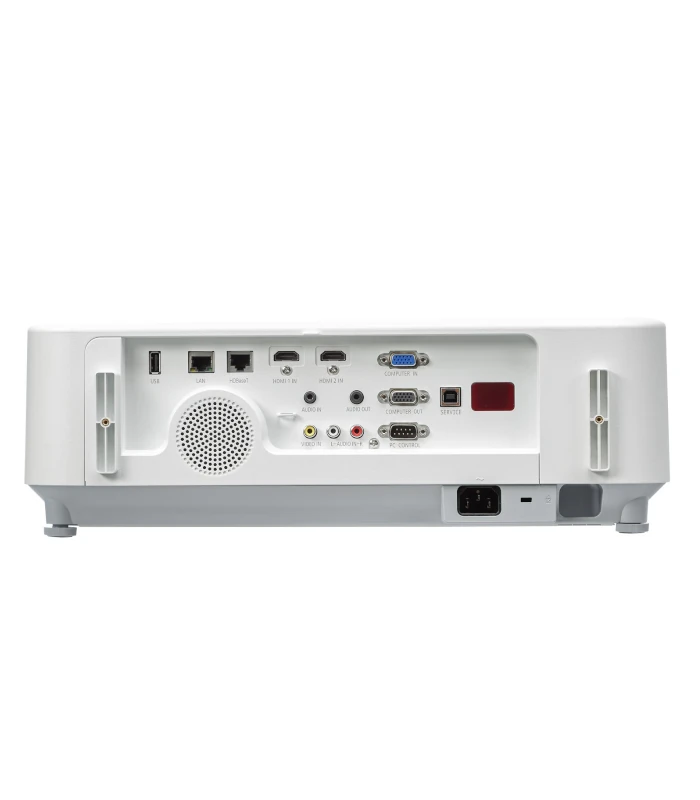

Input Terminals RGB1(analog): VGA 15-pin D-sub RGB2(digital): HDMI w/HDCP RGB3(digital): HDMI w/HDCP RGB4(digital): HDBaseT Video 1: RCA Audio 1: RCA Audio 2: Mini stereo		Output Terminals Audioout: 1/8 in. stereo (Variable audio out) Monitor Out: VGA 15-pin D-sub

Power Consumption (typical)

On	457W / 286W / 2.0W / 0.14W	Input Current	5.0-2.0A
Power Requirements	100-240V AC, 50/60 Hz

Environmental Conditions

Operating Temperature	41-104°F / 5-40°C	Storage	14-122°F / -10-50°C

Limited Warranty (parts & labor)

Registered owners receive a 3-year parts and labor warranty including InstaCare next business day exchange. One year on lamp.

Additional Features

Manual keystone correction Wireless LAN (control only) USB Viewer Auto power on ECO Mode technology Closed captioning Variable audio out Carbon savings meter Virtual Remote Sleep timer Built-in wall color correction Advanced AccuBlend AutoSense

Optical

Display Technology	0.64″ LCD	Light Output(Lumens)	5600 (Center) 5300 (Eco Off) 4250 (Normal Eco) 3200 (Eco)
Lamp Type	330W AC	Lamp Life (up to)	4000 hours (Eco Off) / 6000 hours (Normal Eco) / 8000 hours (Eco)
Screen Size (diagonal)	30 to 300 in. / 0.76 to 7.6m	Throw Ratio	1.2 to 2.0
Projection Distance	2.6 to 42.3 ft. / 0.8 to 12.9m	Projector Angle	0 to 10.0° tele / 0 to 16.0° wide
Lens Zoom: 1 to 1.6 Focus: Manual F number, fnumber: F=1.5 to 2.08, f=17.2 to 27.7mm		Keystone Correction	Manual +/- 20° horizontal, +/- 30° vertical

Mechanical

Installation Orientation	Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear	Fan Noise	37 dB normal / 34 dB eco
Regulations	USA UL 60950-1 / FCC Part15 Class B, Canada CSA 60950-1 / ICES-003 Class B, NOM
