NEC MultiSync UN551S LCD 55″ Video Wall Display

LCD 55″ Video Wall Display-ONE YEAR WARRANTY

$3.969,94

Guaranteed Safe Checkout

Features & Compatibility

DISPLAY

Panel Technology S-IPS with Direct LED backlights
Active Screen Area (W x H) [mm] 1,210 x 680
Screen Size [inch/cm] 55 / 139
Aspect Ratio 16:9
Brightness [cd/m²] 700, 420 Eco (shipment setting)
Contrast Ratio (typ.) Static Contrast 1200:1; Dynamic Contrast 150000:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Haze Level [%] 44
Supported Orientation Face Up; Landscape; Portrait

SYNCHRONISATION RATE

Horizontal Frequency [kHz] 31.5 – 91.1
Vertical Frequency [Hz] 24 – 85

RESOLUTION

Native Resolution
1920 x 1080 at 60 Hz
Supported on DisplayPort and HDMI
3840 x 2160 (24/30 Hz);1920 x 1080;1600 x 1200;1360 x 768;1280 x 1024;1280 x 768;1080i;1080p;1024 x 768;800 x 600;720p (50/60 Hz);640 x 480;576p (50 Hz);480p (60 Hz)
Supported on HDMI only
4096 x 2160 (24 Hz);3840 x 2160 (25 Hz);1360 x 768;576i (50 Hz);480i (60 Hz)

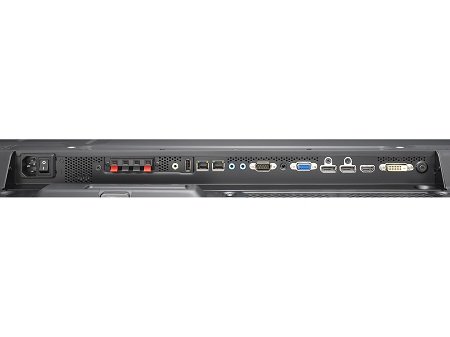

CONNECTIVITY

Input Video Analogue 1 x D-sub 15 pin
Input Video Digital 1 x DisplayPort (with HDCP); 1 x DVI-D (with HDCP); 1 x HDMI (with HDCP); 1 x Interface Extension Slot; 1 x OPS Slot
Input Audio Analogue 2 x 3,5 mm jack
Input Audio Digital 1 x DisplayPort; 1 x HDMI
Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
Output Video Digital 1 x DisplayPort out (loop through:DisplayPort, DVI-D, HDMI, Interface Extension Slot, OPS)
Output Audio Analogue 3,5mm jack
Output Control LAN 100Mbit
Remote Control LAN with SNMP; Remote Control IR (internal/external (optional) sensor); RS-232C (9-pin D-sub) Input

OPEN MODULAR INTELLIGENCE

OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
Inrush Current [A] max. 10
Power Consumption [W] max. 61
Voltage / Current [V/A] 16/4

INTERFACE EXTENSION SLOT

Slot Technology analogue and digital interface extension (NEC standard)

SENSORS

Ambient Light Sensor Optional, triggered actions programmable
Human Sensor Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable
NFC Sensor Integrated, 2cm range, free NEC Android App required

ELECTRICAL

Power Consumption [W] 180 Eco (shipment setting), 260
Power Savings Mode [W] < 0.5 (ECO Standby); < 1
Power Management VESA DPMS

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80

MECHANICAL

Dimensions (W x H x D) [mm] Without stand: 1,211 x 682 x 99
Weight [kg] Without stand: 27
Bezel Width [mm] 0.9 bottom/right; 0.9 top/left; 1.8
VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M6
Ingress Protection IP40 (front); IP20 (back)

ADDITIONAL FEATURES

Special Characteristics Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; Frame Comp; HTTP Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2; Point Zoom Function; Programmable 10-bit LUT with 3 memory banks; Sticky Note Function in OSD; TileMatrix; User readable log function
Colour Versions Black Front Bezel, Black Back Cabinet
Safety and Ergonomics C-tick; CE; Energy Star 6.0; FCC Class A; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI
Audio Optional Speakers (15 W + 15 W)
Shipping Content CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Free LAN control software (download); Power Cable
Signal Cable: LAN cable
Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension
Operating Hours 24/7

AVAILABLE OPTIONS

Accessories Calibration kit (KT-LFD-CC2); Feet (ST-5220); Remote control kit (KT-RC2); Speaker (SP-RM1, SP-TF1); Trolley (PD02VWM 2×2 46 55 L; PD02VWM 3×3 46 55 L); Wall mount (PDVWXUN 55 L/P; PD02VW MFS 46 55 L/P)
Interface Extension SB3-AB1 analogue: Audio; Component; Composite; S-Video
SB3-AB2 analogue: Audio; RGBHV
OPS Slot HD-SDI 1.5G / 3G; HDBaseT receiver; Intel® Celeron and Core i3, i5, i7 Slot-in PCs; OPS Digital Signage Player

GREEN FEATURES

Energy Efficiency Annual energy consumption: 297 kWh (based on 4 operating hours per day); Carbon savings meter; ECOMode; Energy efficiency class: C; Human Sensor; Local dimming



Additional information

Weight 36,5 kg
Dimensions 145,9 × 88 × 32 cm
