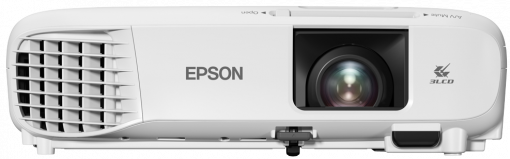

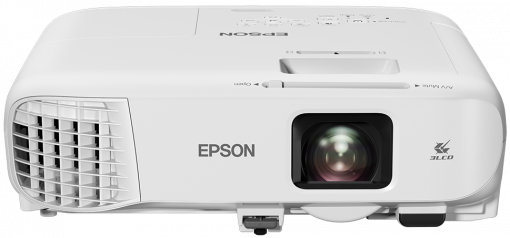

Epson EB-X49 Projector

Tech Specs

Product features and specifications are subject to change without prior notice.

• Technology

  Projection System

  3LCD Technology, RGB liquid crystal shutter

  LCD Panel

  0.55 inch with C2 Fine

• Image

  Color Light Output

  3,600 Lumen- 2,400 Lumen (economy)

  White Light Output

  3,600 Lumen

  Resolution

  XGA, 1024 x 768, 4:3

  Aspect Ratio

  4:3

  Native Contrast

  16,000 : 1

  Light source

  Lamp

  Lamp

  UHE, 210 W, 6,000 h durability, 12,000 h durability (economy mode)

  Keystone Correction

  Auto vertical: ± 30 °, Manual horizontal ± 30 °

  Colour Video Processing

  10 Bits

  2D Vertical Refresh Rate

  100 Hz – 120 Hz

  Colour Reproduction

  Upto 1.07 billion colours

• Optical

  Throw Ratio

  1.48 – 1.77:1

  Zoom

  Manual, Factor: 1.2

  Projection Lens Zoom Ratio

  1 – 1.2 : 1

  Lens

  Optical

  Screen Size

  30 inches – 300 inches

  Projection Lens F Number

  1.49 – 1.72

  Projection Lens Focal Length

  16.9 mm – 20.28 mm

  Offset

  8 : 1

• Connectivity

  USB Display Function

  3 in 1: Image / Mouse / Sound

  Interfaces

  USB 2.0 Type B, RS-232C, Wired Network, Wireless LAN a/n (5GHz) (optional), VGA in (2x), VGA out, HDMI in, Composite in, Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in, USB 2.0 Type A

  Epson iProjection App

  Ad-Hoc / Infrastructure

  Network Protocol

  PJLink

• Advanced Features

  Security

  Kensington lock, Security cable hole, Wireless LAN unit lock

  2D Colour Modes

  Dynamic, Cinema, Presentation, sRGB, Blackboard

  Other features

  AV Mute Slide, Automatic keystone correction, Built-in speaker, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, iProjection App, iProjection set-up by NFC, iProjecton set-up by QR code

  Video Color Modes

  Blackboard, Dynamic, Presentation, sRGB, Theatre

  Projector control

  via: AMX, Crestron, Control4, Extron

• General

  Power consumption

  327 Watt, 225 Watt (economy)

  Supply Voltage

  AC 100 V – 240 V, 50 Hz – 60 Hz

  Product dimensions

  302‎ x 249 x 87 mm (Width x Depth x Height)

  Product weight

  2.7 kg

  Noise Level

  Normal: 37 dB (A) – Economy: 28 dB (A)

  Supported Temperature

  Operation 5° C – 35° C, Storage -10° C – 60° C

  Supported Humidity

  Operation 20% – 80%, Storage 10% – 90%

  Included Software

  iProjection

  Options

  External Speaker, Soft carry case, Wireless LAN unit

  Loudspeaker

  5 Watt

  What’s in the box

  Computer cable, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty card

  Positioning

  Ceiling Mounted, Desktop

  Colour

  White

• Other

  Warranty

  36 months Carry-in, Lamp: 36 months or 1,000 h
