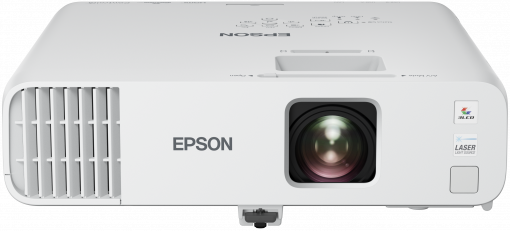

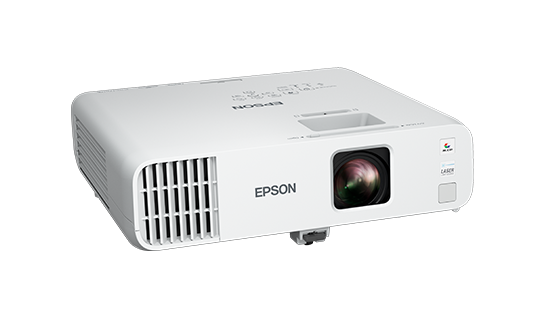

epson EB-L200F projector

Tech Specs

Product features and specifications are subject to change without prior notice.

• Technology

  Projection System

  3LCD Technology, RGB liquid crystal shutter

  LCD Panel

  0.62 inch with C2 Fine

• Image

  Color Light Output

  4,500 Lumen- 3,150 Lumen (economy) In accordance with ISO 21118:2013

  White Light Output

  4,500 Lumen – 3,150 Lumen (economy) In accordance with ISO 21118:2013

  Resolution

  Full HD 1080p, 1920 x 1080, 16:9

  High Definition

  Full HD

  Aspect Ratio

  16:9

  Contrast Ratio

  2,500,000 : 1

  Light source

  Laser

  Laser Light source

  20,000 hours Durability High, 30,000 hours Durability Eco

  Keystone Correction

  Auto vertical: ± 30 °, Manual horizontal ± 30 °

  Colour Video Processing

  10 Bits

  2D Vertical Refresh Rate

  192 Hz – 240 Hz

  Colour Reproduction

  Upto 1.07 billion colours

• Optical

  Throw Ratio

  1.33 – 2.16:1

  Zoom

  Manual, Factor: 1 – 1.62

  Projection Lens Zoom Ratio

  1.33 – 2.16 : 1

  Lens

  Optical

  Screen Size

  40 inches – 500 inches

  Projection Lens F Number

  1.49 – 1.77

  Projection Lens Focal Length

  18.2 mm – 29.2 mm

  Projection Lens Focus

  Manual

  Offset

  10 : 1

• Connectivity

  USB Display Function

  3 in 1: Image / Mouse / Sound

  Interfaces

  USB 2.0 Type A, USB 2.0 Type B, RS-232C, Wired Network, Wireless LAN a/n (5GHz), Wi-Fi Direct, VGA in (2x), VGA out, Composite in, Miracast, Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in, Microphone input, HDMI (HDCP 2.2) (2x)

  Epson iProjection App

  Ad-Hoc / Infrastructure

  Network Protocol

  PJLink

• Advanced Features

  Security

  Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock

  2D Colour Modes

  Dynamic, Cinema, Presentation, sRGB, Game

  Other features

  AV Mute Slide, Auto source search, Built-in speaker, Customizable user logo, Document Camera Compatible, Home Screen, Instant on/off, Long light source life, OSD copy function, PC Free, Quick Corner, Screen Mirroring, Screen share, Split-Screen-Function, Wireless LAN capable, iProjection App, iProjecton set-up by QR code

  Video Color Modes

  Cinema, Dynamic, Presentation, sRGB, DICOM SIM

  Projector control

  via: AMX, Crestron, Control4, Extron IP Link

• General

  Power consumption

  254 Watt, 193 Watt (economy), 0.5 Watt (standby)

  Supply Voltage

  AC 100 V – 240 V, 50 Hz – 60 Hz

  Product dimensions

  325‎ x 299 x 90 mm (Width x Depth x Height)

  Product weight

  4.1 kg

  Noise Level

  Normal: 37 dB (A) – Economy: 28 dB (A)

  Supported Temperature

  Storage -10° C – 60° C

  Supported Humidity

  Operation 20% – 80%, Storage 10% – 90%

  Included Software

  iProjection

  Options

  Connection and control box, Document camera, External Speaker, Soft carry case

  Loudspeaker

  16 Watt

  What’s in the box

  Main unit, Power cable, Remote control incl. batteries

  Room Type / Application

  Boardroom, Home Office, Large Meeting Room / Auditorium, Meeting room / Classroom

  Positioning

  Ceiling Mounted, Desktop

  Colour

  White

  TCO Certified

  Yes
