-9%

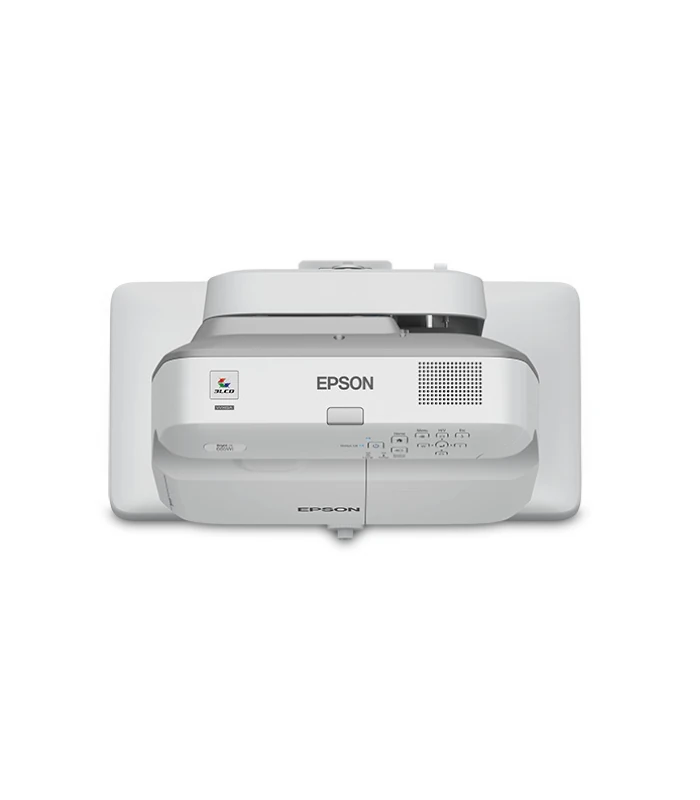

Epson EB‐685WI 3500 Lumens WXGA Ultra Short Throw Projector
Innovative pen-interactive teaching solution with a large scalable screen of up to 100 inches, designed to enhance collaborative learning.
This projector offers superb interactivity thanks to its dual pen capability. With a brightness of 3,500 lumens and HD-ready WXGA resolution, the EB-685Wi’s ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.
High brightness and image quality
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.
Dual pen
Epson’s interactive pens are now even more responsive and easy to use when annotating directly on screen. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.
Highly reliable
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
Interact and enhance learning
Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.
Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App2.
Projection System
3LCD Technology
LCD Panel
0.59 inch with D9
-
Colour Light Output
3,500 Lumen- 2,900 Lumen (economy)White Light Output
3,500 Lumen – 2,900 Lumen (economy) in accordance with ISO 21118:2012Resolution
WXGA, 1280 x 800, 16:10High Definition
HD readyAspect Ratio
16:10Contrast Ratio
14,000 : 1Light source
LampLamp
250 W, 5,000 h durability, 10,000 h durability (economy mode), 9,000 h durability (economy mode)Keystone Correction
Manual vertical: ± 3 °, Manual horizontal ± 3 °Colour Processing
10 Bits2D Vertical Refresh Rate
100 Hz – 120 HzColour Reproduction
upto 1.07 billion colours -
Optical
Projection Ratio
0.28 – 0.37:1Zoom
Digital, Factor: 1 – 1.35Lens
OpticalImage Size
60 inches – 100 inchesProjection Distance Wide
0.4 m ( 60 inch screen)Projection Distance Tele
0.6 m ( 100 inch screen)Projection Lens F Number
1.6Focal Distance
3.7 mmFocus
ManualOffset
5.8 : 1 -

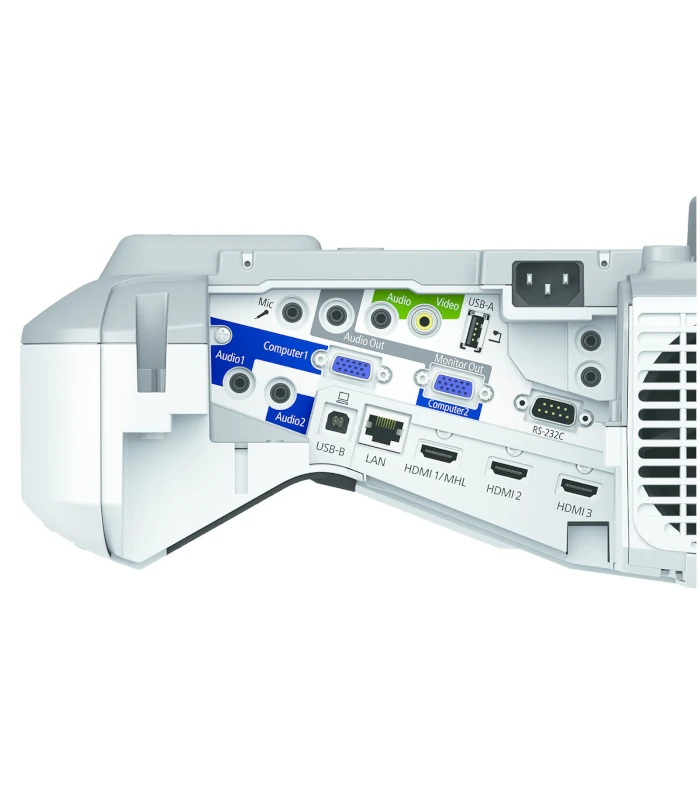

Connectivity
USB Display Function
3 in 1: Image / Mouse / SoundInterfaces
USB 2.0 Type A, USB 2.0 Type B, RS-232C, Wired Network, Wireless LAN IEEE 802.11b/g/n (WiFi 4) (optional), VGA in (2x), VGA out, HDMI in (3x), Composite in, RGB in (2x), RGB out, MHL, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Sync. in, Sync. outEpson iProjection App
Ad-Hoc / Infrastructure -
Advanced Features
Security
Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection2D Colour Modes
Dynamic, Cinema, Presentation, sRGB, BlackboardFeatures
AV mute slide, Auto calibration, Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Interactive, Long lamp life, MHL audio/video interface, Microphone input, spectextoptionfeaturesprojectorpcinteractive, PC free annotation, Split-Screen-FunctionInteractivity
Yes- penVideo Colour Modes
Blackboard, Cinema, Dynamic, Presentation, sRGB, WhiteboardProjector control
via: AMX, Crestron (Network), Control4 -
General
Energy Use
354 Watt, 310 Watt (economy), 0.39 Watt (standby)Supply Voltage
AC 100 V – 240 V, 50 Hz – 60 HzProduct dimensions
367 x 400 x 149 mm (Width x Depth x Height)Product weight
5.9 kgNoise Level
Normal: 35 dB (A) – Economy: 30 dB (A) – Eco2: 29 dB (A)Temperature
Operation 5° C – 35° C, Storage -10° C – 60° CHumidity
Operation 20% – 80%, Storage 10% – 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.Included Software
Easy Interactive Tools, Epson Projector Management Software, EasyMP Multi PC ProjectionOptions
Air filter, Connection and control box, Document camera, External Speaker, Pen tip(Felt), Pen tip(Teflon), USB extension cable, Wireless LAN unitCompatible Operating Systems
Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1Loudspeaker
16 WattWhat’s in the box
Interactive pens, Main unit, Pen tray, Power cable, Quick Start Guide, Remote control incl. batteries, USB cable, User Manual (CD-ROM), Wall hanging bracket, Warranty cardRoom Type / Application
Collaboration space / ClassroomPositioning
Wall MountedColour
White / GreyTCO Certified
Yes
